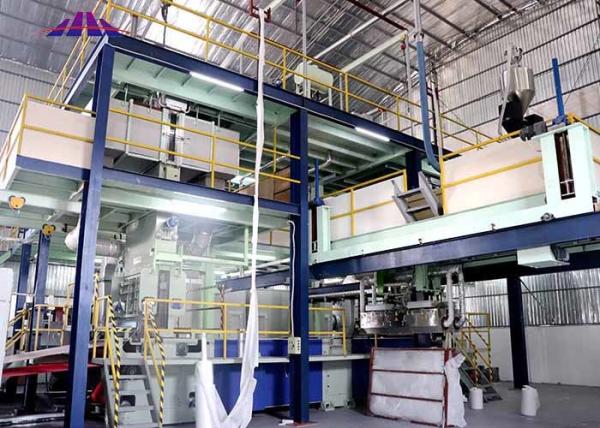

reliable high speed low investment Hydrophobic SMMS Nonwoven Fabric Producting line Machinery

2400 SMMS Model

HHM SMMS Fabric production line catalog

SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical Products)

finished fabric sample

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

Main Components of SMMS system

Suction amchine and color matching machine are mainly used to extract pp material and its dyeing

Metering pump is used to control the output by calculating the amount of pp material

Screw extruder is to heat PP material and extrude raw material

Spinning box ,is one of most import parts of the non-woven fabric manufacturing machine. PP material through the spinning box is spun into countless strands of silk .

Filter to filter the melted PP raw material and remove impurities

The silk thread is spun through this box to achieve temperature control and constant temperature .

Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.

Calandr where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .

Winder machine is used to have made the non woven finished products into the packaging equipment .

High precisely CNC machine

EXHIBITION SHOW

Packing and delivery

The line or components will also be treated according to export standard against damage and rusting before delivery

Our Service

2.Guarantee:

CHUZHOU HH Non Woven Technology CO.,LTD is professional in manufacturing and selling PP/PET spunbonded and meltblown nonwoven fabric making machine.

With the stable quality and easy operation of the nonwoven production line, our regular product includes single beam, double beam, SSS, SMS, SMMS, SSMMS and etc., regular width is 1600mm, 2400mm, 3200mm,4000mm,4200mm;

Varies applications for shopping bags, home decoration, medical area, hygiene area, agricultrue, and etc.

We have good reputation in spunbond area not even in China but also in other country, we have supplied to China domestic, India, Pakistan, Turkey, Russia, Australia, and etc.

We insist on customer-focused, quality-first, best after-sale service, expecting the cooperation with you.

1) The whole line is well-structured and easy to operate.

2) The whole line is highly automated.

3) Control elements are of well-know make, high performance and reliable technologies.

4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.

Features:

1)It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labor and widely compatibility and so on.

The equipment produces non-woven fabric with polypropylene(PP), adopts the technology of formating the web by negative pressure, make into PP spun-bonded non-

woven fabric, the product is featured by uniform cover, great intensity, good ventilation and good feeling and so on. It has been in wide use in medical clothes, package and architecture and so on.

2)The lower investment can reduce some unnecessary additional auxiliary facilities, and under the conditions of guaranteeing the technology requirement and safe production, can reduce the cost of the manufacture, so that we can reduce the investment lower.

3)Its easy and reliable to making technics adjustment, the line adopts the method of computer controlling assistant systems combines with human control to make the technics adjustment become more easier and reliable, and the machine can adapt to different raw materials to gain more widely usage.

4)The requirement of the workshop and equipment is very simple, it reduces the fixed assets investment, and efficiently take the advantage of the room of the platform, and enlarge the utilization of the workshop and the steel platform.

5) More specialty in processing the main equipment increasing the procession precious and capacity of the machine, this reduces the manufacture cost and to undertake the quality of the product more well.

APPLICATION:

Medical Protect

Surgical gown&cap, patient clothes, bed sheet, pillow covers, face mask, glover, diaper, Shoe cover, curtains, etc.

Sanitary and Health

Baby diaper, feminine hygiene, hygiene pad, baby training trouser, incontinence pads. etc. Cover of the high absorbent material after hydrophilic treatment, diaper edge for preventing Leaking. Diaper backing after composite with other material etc

Packing and Industry

Shopping bag, tarpauins, tents, bag for rice/sugar, luggage, vacuum cleaner bag, buff pad, Interlining and cloth, shoulder padding etc.

Argriculture:

Cover tree, cope cover, garden cover etc.
