    smmss smms sms ss sss for medical sanitary napkins diapers Meltblown Fabric Production Line

    Ask Lasest Price
    Brand Name : HH non-woven
    Model Number : ssmms
    Price : 1000000$/set
    Supply Ability : For detailed talk
    Delivery Time : For detailed talk
    Certification : CE
    • Product Details
    • Company Profile

    smmss smms sms ss sss for medical sanitary napkins diapers Meltblown Fabric Production Line

    smmss smms sms ss sss for medical sanitary napkins diapers Meltblown Fabric Production Line


    This production line is polypropylene non-woven equipment. Its raw material is polypropylene (PP), using the principle of spinning fiber, in the polymer filament, continuous silk extension into fiber, the process is completed by mechanical hot pressing. They are widely used in health, medical, filtration and industrial and agricultural fields. They are mostly used in the medical field. In addition, the production line can also produce different colors, different widths, different grams, different properties of non-woven fabrics according to the needs of users.


    HHM-SSMMS Five-Beam spunmelt nonwoven fabric making machine/line

    Effective

    Width(mm)

    Raw Materials

    GSM Range

    (g/sq.m)

    Max.Speed

    (Tons/year)

    Annual Capacity

    (Tons/year)

    Daily Capacity

    (Tons/Day)

    2400

    Polypropylene(PP)

    9-80600840023
    32001140031
    42001460040
    The whole line can CUSOMIZED as your needs .

    Parts of spunbonded nonwoven fabric production line:

    Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter


    Spunbonded process and technical flow chart:

    Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product


    Parts of Melt blown nonwoven fabric production line:

    Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter


    Melt blown process and technical flow chart:

    Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product


    key component



    Name:Main Extruder
    Brand:HHM
    Original:China
    Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

    Max speed: 75r/min for 1.6m , 85r/min for 3.2m

    Motor:90kw for 1.6m , 132kw for 3.2m



    Name:Filter
    Brand:HHM
    Original: China
    Type: Hydraulic or Candle filter

    Filter precision: 45μm~60μm

    Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m

    Heat source : heat-transfer oil , circular heating


    Name: Spinning Box

    Orifice number:11019 for 1.6m , 17651 for 3.2m

    Orifice diameter:Φ0.45mm

    L/D=4:1

    Max temperature:300℃


    Fuction : for spining the PP flament.



    Name:Metering Pump
    Brand:HHM
    Original:China
    Supply volume:200cc for 1.6m, 200ccx2 for 3.2m

    Rotate speed:5~35r/min

    Max Pressure:35MPa

    Temperature:≤330℃

    Fuction: meter PP melt liquid


    working process

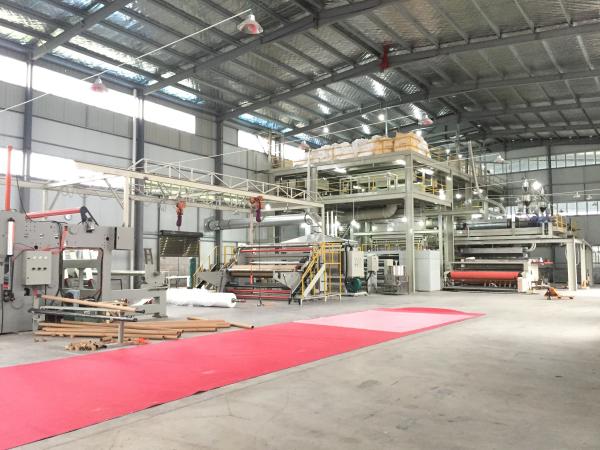

    Machine image

    smmss smms sms ss sss for medical sanitary napkins diapers Meltblown Fabric Production Line

    smmss smms sms ss sss for medical sanitary napkins diapers Meltblown Fabric Production Line

    smmss smms sms ss sss for medical sanitary napkins diapers Meltblown Fabric Production Line


    Packing and deliever


    Machine Nude packing , wooden case is optional , case packing , electric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.



    Our service

    1. We provide pre-sales, sales and after sales service, especially one year of free maintenance warranty.

    2. If there are problems with the machine parts, customer can take pictures and send to us by email to explain the situation, we will help to solve
    it on line or by email as soon as possible.

    3. If there are big problems of the machine caused by wrong operation, we will arrange professional engineer to solve the problem in customer's
    factory, but all the cost including visa, air fare and accommodations must be paid by customer.
