S Model (Packaging , Agricultural Cover )
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 9-250G/㎡ | 130KW | 1800T |
| 2400mm | 9-250G/㎡ | 180KW | 2200T |
| 3200mm | 9-250G/㎡ | 200KW | 3300T |
| 4000mm | 9-250G/㎡ | 300KW | 4400T |
| 4800mm | 9-250G/㎡ | 400KW | 5100T |
SS Model ( Baby Diaper ,Medical Products )
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 9-120G/㎡ | 200KW | 3700T |
| 2400mm | 9-120G/㎡ | 2500KW | 5100T |
| 3200mm | 9-120G/㎡ | 200KW | 6600T |
| 4000mm | 9-120G/㎡ | 300KW | 8800T |
| 4800mm | 9-120G/㎡ | 450KW | 10000T |
SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical
Products)
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 15-250G/㎡ | 400KW | 3200T |
| 2400mm | 15-250G/㎡ | 600KW | 5100T |
| 3200mm | 15-250G/㎡ | 800KW | 7000T |
| 4000mm | 15-250G/㎡ | 1000KW | 8700T |
| 4800mm | 15-250G/㎡ | 1200KW | 10500T |
Parts of spunbonded nonwoven fabric production line:
Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction
device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air
chamber→stretching device→Web former→Calender→Winder→Slitter
Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)→Raw
material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web
forming→Calendering→Winding→Cutting→Final product
Parts of Melt blown nonwoven fabric production line:
Main extruder→filter→Metering pump→Air heating system→Melt blown
sprayer (ENKA sprayer)→Web former→Winder→Slitter
Melt blown process and technical flow chart:
Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web
forming→Winding→Cutting→Final product

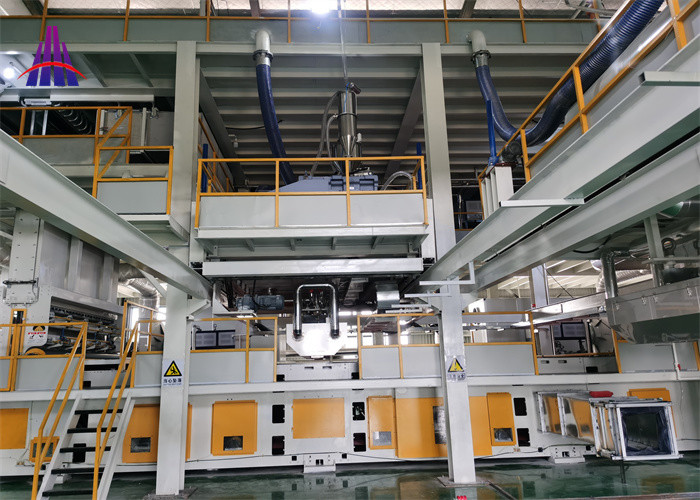

Image of non woven system
Core component of non wovne system
Meltblown die head assembly
maximum temperature: 300.;
Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10; Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;
Oil Heating Furnace
The heat-conducting oil furnace is mainly used for heating,
melting, spinning, thermosetting polymerization, finishing of
fabric, extension and drying equipment. The working temperature can
be controlled accurately
Name: Material Auto-Feeder
Feeding capacity: 300Kg/h for 3.2m,
Motor Power: 1.1KW
The vacuum suction machine forms a negative pressure air flow under
vacuum. Under the action of this airflow, the transported material
is transported to the other container through the suction pipeline
instantaneously. As a result of the vacuum condition, the material
will not leak into the surrounding environment and prevent dust
pollution even if the pipe leakage occurs. It is a device used to
adsorb raw materials.
Extrusion Machine
Aperture:90 300kg/h 1pc;
Heating System: electricity heating; Drive Motor: Siemens;
Original:CHINA;
Spinneret
The role of spinneret is to transform viscous flow of polymer melt
or solution into small section with special section, and solidify
through solidified medium, such as air or solidification bath. It
is used for the uniform exit of the tow.
Vacuum calcinator
The latest chemical fiber component, filter core cleaning
equipment. It is suitable for the ordinary spinneret used for
polyester, polyamide and polypropylene fiber."
up stretching
The stretching device including up stretching and down stretching
unit, the function is drawing spinning, flaments into web forming
by air.
lower strenting
Make the tow even more uniform before entering the netting machine
Web forming machine , Its function is to use negative pressure to
collect fiber and continuously carry forward, so as to obtain
continuous fiber network. The device is composed of a direct
current transmission device and a frame, a transmission net curtain
and a supporting air suction device. It belongs to the tow mobile
device.
Automatic Winding Machine
Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute
Rolling Diameter:2000 mm Original: CHINA
Automatic Slitting Machine
Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling
size:1500mm diameter; Auto tensile control:online; Auto meter
counting:online; Original:CHINA;
High precisely CNC center hold machining parts beyond customer
request
Exhibition with customer
Shipping and packing
Electrical and small parts will numerable put in carton box or
wooden box , large machine with wrapping with PE film , fixed in
container ,keep cargo safe .
How to start the Nonwoven fabric manufacturing business ?
All potential buyers should check below factors if you want to
produce nonwoven fabrics .
- Enough project investment : This nonwoven fabric machine cost
＄200000 to ＄5000000 Ave.
- Workshop space for nonwoven fabric machine 200 -500 ㎡,space length
30 meter , width 10 -20 meter , height 11 meter
- Nonwoven fabric machine operation team 4 - 6 workers
- Polypropylene raw material and additives 5 tons each day .
- Stable electricity supply system 380 V.
FAQ
1. Are you factory or trading company?
Actually we are manufacturer with our own factory , have the right
to export and import product authorized by government.
2. Can you do OEM .
Yes of course .we can produce the product an per you request.
3. Can I get sample from your company? Should I pay the express
fee?
If we have the sample in stock ,it will be free. If you want a
customized sample ,we can renegotiate the cost. About the express
fee , please offer a freight collected account and pay for the
express by you side. After confirming you order ,the samples
freight will be deducted from you order’s total cost.
4. what can I do if machine stop work?
You can email us ,call us or video call we let our engineer
checking what is the problem is, if the spare parts or something
broken in the warranty time, we offer free.
5. what is your after service?
We offer customer a lifetime service.
