multi three beam sss Spunbond Nonwoven Fabric Machine for hyiene adult and baby diapers

The Main Applications Of Spunbond Nonwovens

Non-woven packaging products

Shopping bags, rice packaging, tea bags, clothing packaging, etc.

Non-woven hygiene products

Baby and adult diapers: topsheet, backsheet, ears, tape, landing area;

Feminine hygiene: top sheet, wings;

Cleaning wipes: baby care, cosmetics, etc.

Non-woven medical products

Surgical caps, surgical masks, disposable clothes, surgical drapes, surgical sheets, shoe covers, etc.

Non-woven technology products

Geotextile: anti-corrosion, filtration, reinforcement, drainage, isolation layer, embankment fortification, etc.

Embankment and farm structural engineering: asphalt support, roof insulation panels, clapboards Agriculture: forced crops

Automobiles, interior panels, sound insulation materials, heat insulation materials, etc.

Non-woven furniture products

Beds: pocket springs, mattresses, cushions, bedspreads, treated

.FEATURES
Dosing & metering system
Vacuum suction or blower feeding system. Gravimetric metering system with precise accuracy. Automatic alarm for high and lowposition limit.

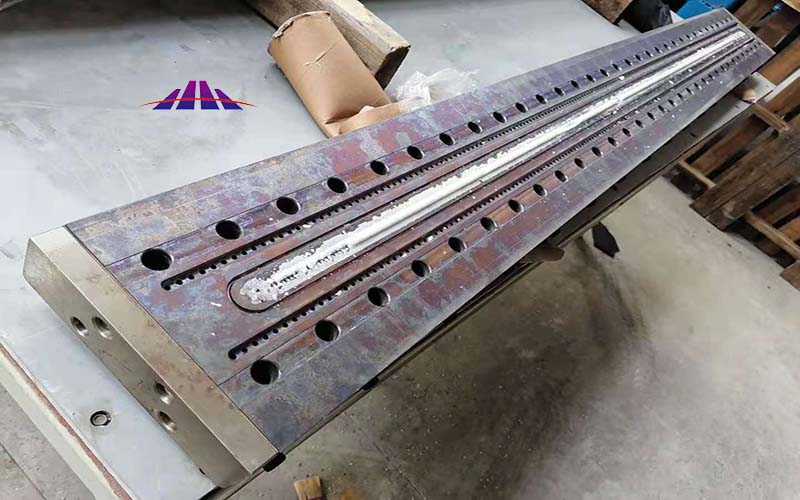

Spinning beam
Single coat-hanger melt distribution, manufactured by 4-coordinates CNC, grinding by manual.
Quenching chamber
Several layers multistep honey plates with different size holes. Quenching air distribution is uniform and easier for dismountingand cleaning.
Stretching channel
Inside wall is made of polished stainless steel, top and bottom stretching channels can adjust slot width at the same time.
Diffusing channel
Channel is made of stainless steel. Special forming process and welding technology guarantee the whole channel is flat and no shape changing.
Conveyor
Rollers are inspected by dynamic balance to guarantee running in stable situation. Surface of prepressing roller is coated by ceramic, to prevent entanglement. MB system has pneumatic belt protection unit.
Meltblown system
Imported screw blower has been applied to create stretching air. Pressure is constant, Spinning pressure is lower, higher
efficiency and less power consumption.
Electrical control system
The whole machine is controlled by PLC, AC inversion motor for the whole synchronization system, The process parameters and fault can be displayed and alarmed. The whole system is in stable and reliable situation.

Product application

SSS Model

The Advantage of HH Nonwoven Fabric Making Machines:

1.High accurate raw material blender for polyproplyene and additives;

2.High capacity extrusion machine with good screw and barrel;

3.High performance melt filtration system;

4.High Speed with high accurate melt pump;

5.Lastest melt flow design and spinning system;

6.Well-know PLC control system and motors;

7.Smart operation program and monitoring syustem;

Key component

Fabricate process

CNC center

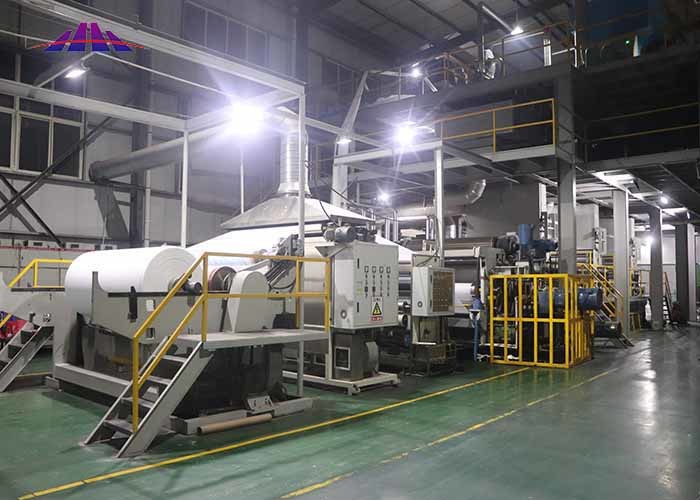

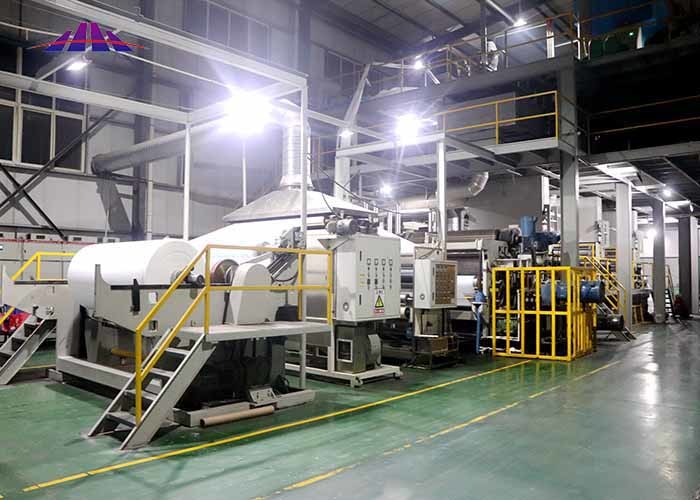

Image of our machine

7.Packaging Details

Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.

Our Service

.Pre-Sales Service

Design and make plan for the workplace.

Offer sketch map of machine and place it into the workplace

After-sales Service

Training and training how to use the machine.

Engineers can repair machinery.

FAQ

1. Q : Are you a factory or trading company ?

A : We are established in 2009 , has been in onwoven industry for more than ten years .

2. Q: Do you have technical support?

A: yes , we will provide on-site installation service.

3 Q : How does your factory do regarding quality control ?

A: Quality is the most important principle . we always attach great importane to quality controlling from the very beginnging to the very end , our factory has passed CE and ISO certification .

4 Q :How long is you machine’s warrant period .

A : bascily one year warranty , long time service support .

CHUZHOU HH Non Woven Technology CO.,LTD is professional in manufacturing and selling PP/PET spunbonded and meltblown nonwoven fabric making machine.

With the stable quality and easy operation of the nonwoven production line, our regular product includes single beam, double beam, SSS, SMS, SMMS, SSMMS and etc., regular width is 1600mm, 2400mm, 3200mm,4000mm,4200mm;

Varies applications for shopping bags, home decoration, medical area, hygiene area, agricultrue, and etc.

We have good reputation in spunbond area not even in China but also in other country, we have supplied to China domestic, India, Pakistan, Turkey, Russia, Australia, and etc.

We insist on customer-focused, quality-first, best after-sale service, expecting the cooperation with you.

1) The whole line is well-structured and easy to operate.

2) The whole line is highly automated.

3) Control elements are of well-know make, high performance and reliable technologies.

4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.

Features:

1)It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labor and widely compatibility and so on.

The equipment produces non-woven fabric with polypropylene(PP), adopts the technology of formating the web by negative pressure, make into PP spun-bonded non-

woven fabric, the product is featured by uniform cover, great intensity, good ventilation and good feeling and so on. It has been in wide use in medical clothes, package and architecture and so on.

2)The lower investment can reduce some unnecessary additional auxiliary facilities, and under the conditions of guaranteeing the technology requirement and safe production, can reduce the cost of the manufacture, so that we can reduce the investment lower.

3)Its easy and reliable to making technics adjustment, the line adopts the method of computer controlling assistant systems combines with human control to make the technics adjustment become more easier and reliable, and the machine can adapt to different raw materials to gain more widely usage.

4)The requirement of the workshop and equipment is very simple, it reduces the fixed assets investment, and efficiently take the advantage of the room of the platform, and enlarge the utilization of the workshop and the steel platform.

5) More specialty in processing the main equipment increasing the procession precious and capacity of the machine, this reduces the manufacture cost and to undertake the quality of the product more well.

APPLICATION:

Medical Protect

Surgical gown&cap, patient clothes, bed sheet, pillow covers, face mask, glover, diaper, Shoe cover, curtains, etc.

Sanitary and Health

Baby diaper, feminine hygiene, hygiene pad, baby training trouser, incontinence pads. etc. Cover of the high absorbent material after hydrophilic treatment, diaper edge for preventing Leaking. Diaper backing after composite with other material etc

Packing and Industry

Shopping bag, tarpauins, tents, bag for rice/sugar, luggage, vacuum cleaner bag, buff pad, Interlining and cloth, shoulder padding etc.

Argriculture:

Cover tree, cope cover, garden cover etc.
