High Speed SMS smms low investment pp spunbond nonwoven production
line
PP non-woven machine is designed and manufactured according to the
individual requirements of customers, which is equivalent to the 3
/ 4 model of reifenh ä user reicofil. Therefore, they may have a
wide range of applications.
PP non-woven machine has the characteristics of less investment,
compact structure, small floor area, simple production process,
simple operation, labor saving, wide compatibility and so on.
In the spunbonded nonwovens process, the polymer is transformed
into endless filaments by melt drawing, and then deposited on the
metal mesh belt. Converting particles into nonwovens requires only
one production step.
We distinguish three different types of spun wires: one, two and
three. The biggest difference is the greater linear speed, so the
additional beam provides additional output capacity.
SMS pp Spunbond Non-Woven Production Line consists:
Extruder, filter, melt pump, spinning box, drawing device,
extraction fan, calender, winding, unwinding, cutting device. All
of this can be automated.
Main data of machine:
Raw materials: polypropylene, masterbatch, additive.
Final product width: 1600mm
Fiber fineness: ≤2.2den
Output: 330kg/h (according to 15g/ m2, 1.6m wide)
Fabric weight: 13-150gsm square meters
Line speed: 10-550 m/min
Spunbond nonwovens are widely used in construction, agriculture,
medicine and health, packaging and covering, disposable goods
clothing, decorative materials, civil engineering and other fields.
Important data at a glance
Voltage | AC380V,50 Hz |
GSM RANGE | 10-100GSM |
MAX SPEED | 500m/min |
PRODUCTION CAPACITY | 5000ton/year |
Material | Polypropylene chips (meltblown PP MIF: 1500-1800; Spunbond PP MIF:
28-45) |
Product Width | 1600mm:10-100gsm |
Max. Roll Diameter | 1500mm |
Power Consumption | ≥800kw |
Air pressure | 0.5-0.8MPa |
Cooling water | 5m2/h,20℃ or 2.5m2/h,10℃ |
Equipment Size | 35m(L)X 18m(W)X 12m(H) |

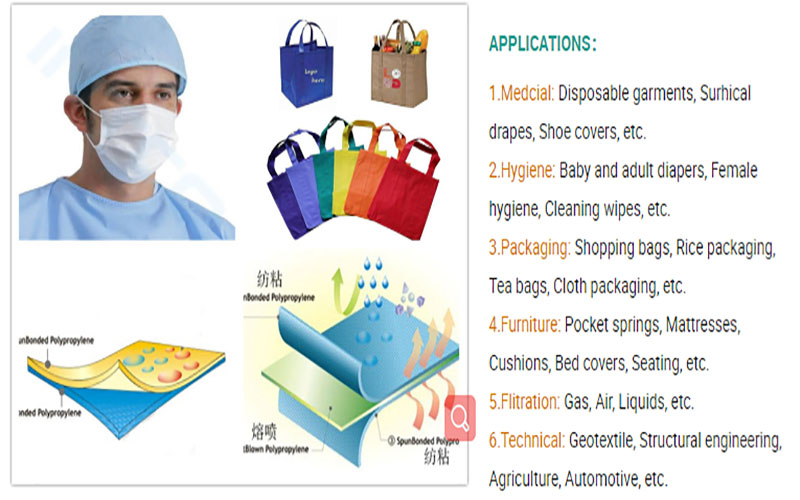

| Spunmelt Composite Nonwovens Mainly Applications |
| Nonwoven Medical Product | Surgical drapes ,Surgeon’s mask ,etc . |
| Nonwoven Hygiene Product | Baby and adult diapers |
| Work protection product | Protctive clothing , breathing masks |
| Nonwoven Filtration product | Protective clothing , breathing masks |
working process
1. PREPARE OF RAW MATERIAL
2. LOADING MATERIAL TO HOPPER/DOSING SYSTEM
3. SCREW EXTRUDER FOR MELTING MATERIAL
4. MELTING FILTERIMPURITY; METERING ACCRODING FINISHED WEIGHT
5. SPUNBOND: SPINNING BOX AND SPINNERET; MELTBLOWN HEAD AND SYSTEM
6. COOLING AND STRETCHING SYSTEM
7. WEB LAPPER& CONVEYOR
8. CALENDER IN HIGH TEMPERATURE AND HIGHSPEED; WINDING& SETTING&
SLITTING& CUTTING
9. WAREHOUSE FOR FABRIC STORAG
SMS
Effective Width (mm) | Raw Material | GSM Range (g/sqm) | Max Speed (m/min) | Annual Capacity (Ton / year ) | Daily Capacity ( Ton / day ) |
| 1600mm | Polypropylene(PP) |
9-100g | 350 | 3200T | 9T |
| 2400mm | 5100T | 14T |
| 3200mm | 7000T | 19T |
| 4000mm | 8700T | 24T |
SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical
Products)
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 15-250G/㎡ | 400KW | 3200T |
| 2400mm | 15-250G/㎡ | 600KW | 5100T |
| 3200mm | 15-250G/㎡ | 800KW | 7000T |
| 4000mm | 15-250G/㎡ | 1000KW | 8700T |
| 4800mm | 15-250G/㎡ | 1200KW | 10500T |
S Model (Packaging , Agricultural Cover )
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 9-250G/㎡ | 130KW | 1800T |
| 2400mm | 9-250G/㎡ | 180KW | 2200T |
| 3200mm | 9-250G/㎡ | 200KW | 3300T |
| 4000mm | 9-250G/㎡ | 300KW | 4400T |
| 4800mm | 9-250G/㎡ | 400KW | 5100T |
SS Model ( Baby Diaper ,Medical Products )
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 9-120G/㎡ | 200KW | 3700T |
| 2400mm | 9-120G/㎡ | 2500KW | 5100T |
| 3200mm | 9-120G/㎡ | 200KW | 6600T |
| 4000mm | 9-120G/㎡ | 300KW | 8800T |
| 4800mm | 9-120G/㎡ | 450KW | 10000T |
Parts of spunbonded nonwoven fabric production line:
Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction
device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air
chamber→stretching device→Web former→Calender→Winder→Slitter
Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)→Raw
material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web
forming→Calendering→Winding→Cutting→Final product
Parts of Melt blown nonwoven fabric production line:
Main extruder→filter→Metering pump→Air heating system→Melt blown
sprayer (ENKA sprayer)→Web former→Winder→Slitter
Melt blown process and technical flow chart:
Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web
forming→Winding→Cutting→Final product
Raw Material Dosing Machine
Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding
Percentage: 1-99%; Original:USA/ITALY;
Meltblown heater
Melting injection cloth heater is an electric heating device
installed in a tube insulation container to heat gas and
liquid.Melting-blown cloth heater has fast heating speed, good
insulation performance and high heating temperature.
Spinning Beam
Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating;
Distribution Design: big hanger type; Original:CHINA;
Extrusion Machine
Aperture:90 300kg/h 1pc;
Heating System: electricity heating; Drive Motor: Siemens;
Original:CHINA;
Automatic Winding Machine
Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute
Rolling Diameter:2000 mm Original: CHINA
Production Line Control Cabinet
Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens;
Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;
High precisely CNC center hold machining parts beyond customer
requirest .
Exhibition show with customer
Shipping and packing
Be Coated with anti-corrosion oil, and covered with plastic film,
then packed in wooden box.
FAQ
Q1: What's your warranty policy?
A1: The Seller will guarantee the machine for 18 months since the
date of shipment (that is leaving from Seller's factory) or the
seller will guarantee the machine for 12 months since the date of
starting installation and adjustment, whichever comes first.
Q2: What's your minimum order quantity?
A2: Min order quantity: 1 set or by negotiate with each other.
Q3: What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic
film, then packed in wooden box.
Q4: Do you have technical instruction if I buy your product?
A4: Please read the user manual carefully for your reference, we
have detail instruction on it. If your problems still cannot be
solved, welcome to contact us for help.
Q5: What is your overseas service?
A5: We will provide high quality overseas service, our technical
staff will be able to provide you with technical support, for you
personally to overseas assembly and test equipment.
Q6: Will you conduct training for our staff here?
A6: Yes, we will provide technology support to factory technology,
training for the relative person.
Q7: What are your terms of payment?
A7: We accept T/T.
Q8: How does your factory do regarding quality control?
A8: Quality is priority. We always attach great importance to
quality controlling from the beginning. And we have CE certificate.
Q9: How does your factory control the quality?
A9: We have the professional QC group inspect the details in each
process. After finishing the goods, our QC will inspect piece by
piece.
Q10: I am very satisfied after I read your FAQ, how can I start to
purchase my order?
A10: Please click the "send" at the bottom of this page or contact
our sales on Trade Mange online!
Dear friend:
Welcome you purchase our standard products or send us your OEM and
ODM requests. You will be impressed by our superior quality, quick
delivery date and attractive price. If any question about non-woven
machine, contact me at any time, please!
