    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm

    Ask Lasest Price
    Brand Name : Chuzhou HH non-woven
    Model Number : 1.6sss 2.4sss 3.4sss 4.8sss
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : For detailed talk
    Delivery Time : For detailed talk
    • Product Details
    • Company Profile

    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm

    breathable skin-friendly fabric making 1600 SSS spunbond non wovenn fabric machine


    What is SSS spunbond fabric making machine?
    S is spunbond nonwovens (spunbond nonwovens), single S is single layer spunbond nonwovens, double S is double layer composite spunbond nonwovens, triple S is triple layer composite spunbond nonwovens.
    They are durable and disposable. Insulation, conduction. Soft, stiff sex. Fineness, eliminability. Anisotropy, anisotropy. Filters, breathable and impermeable. Elastic or stiff. Light, loose and warm. Thin as a cicada wing, thick as a blanket. Waterproof and wet. Ironing, stitching and molding. Flame retardant, anti-static. Water permeable, waterproof, wear-resistant, fluffy. Aging resistance, good elasticity, high moisture absorption, good water resistance
    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm

    Spunbond fabrci making will help your profit , for example 3.2 M


    Type HHM S 3.2 Fabric Making line , Output Daily :10 Ton
    ItemsCost USD/tonCost /yearMemo
    Polypropylene PP Chips$1,400$5,110,000
    Electrictity Power$90$328,500
    Laborer$32$116,800
    Machine Parts consumption$3$10,950
    Total$5,566,250
    Non woven Fabric price$1,881$6,865,650
    Return per year$1,299,400

    HHM 1600 m SSS Double beam fabric making line date


    Width1600 M
    Gsm9 - 100 gsm
    Output per day12 - 17 Ton
    Machine Speed≦ 550 m / min
    Transformer≈ 630 KVA
    Power Consumption650º - 800º / Ton
    Machine Size50 * 15 *12 M

    SSS Model


    Effective width(mm)16002400320040004800
    Output(ton/year)5800T7300T10000T12400T14000T
    GMS Range(g/㎡)9-1009-1009-1009-1009-100
    Max.speed(m/min)550550550550550

    SMS Model


    Effective width(mm)16002400320040004800
    Output(ton/year)3200T5100T7000T8700T10500T
    GMS Range(g/㎡)9-1009-1009-1009-1009-100
    Max.speed(m/min)350350350350350

    SMMS


    Effective width(mm)16002400320040004800
    Output(ton/year)4000T6200T5400T10500T12700T
    GMS Range(g/㎡)9-1009-1009-1009-1009-100
    Max.speed(m/min)450450450450450

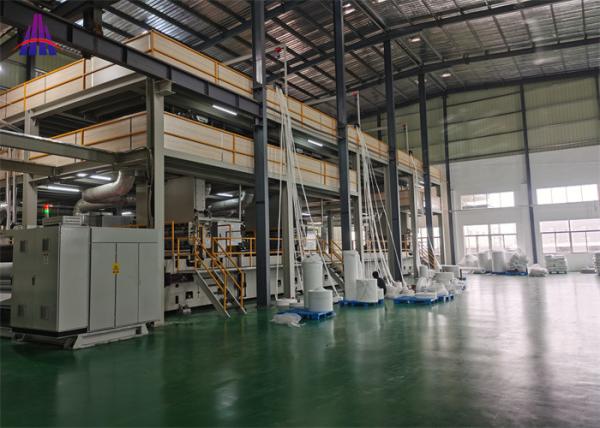

    Image of non wovne fabric making line


    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm



    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm

    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm


    1) Parts of spunbonded nonwoven fabric production line:


    Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
    Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter


    2) Spunbonded process and technical flow chart:


    Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
    Web forming---->Calendering---->Winding----> Cutting---->Final product


    system maim parts


    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm


    Name:Main Extruder
    Brand:HHM
    Original:China
    Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,

    Max speed: 75r/min for 1.6m , 85r/min for 3.2m

    Motor:90kw for 1.6m , 132kw for 3.2m


    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm


    Name: Spinning Box

    Orifice number:11019 for 1.6m , 17651 for 3.2m

    Orifice diameter:Φ0.45mm

    L/D=4:1

    Max temperature:300℃


    Fuction : for spining the PP flament.


    NameSpinning box
    Orifice number1109 for 1.6 m , 17651 for 3.2 m
    Orifice diameter¢0.45mm L/D 4 : 1
    Max temperature300℃
    FuctionFor spinning the PP flow

    Precisely heavily CNC center keep machining parts beyond customer request .


    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm


    SSS Spunbond Nonwoven Fabric Machine Breathable Skin Friendly 1600mm


    Exhibition




    Our service


    Pre-Sales Service


    Design and make plan for the workplace.

    Offer sketch map of machine and place it into the workplace


    After-sales Service


    Training and training how to use the machine.

    Engineers can repair machinery.
