    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S

    Ask Lasest Price
    Brand Name : Chuzhou HH non-woven
    Model Number : HHM - SS SSS
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3 line / months
    Delivery Time : 90 - 150 days
    • Product Details
    • Company Profile

    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S

    HH Nonwoven Brand high capacity 3200mm SSS SS S PP Spunbond Nonwoven fabric making machine

    Product Description


    Polypropylene 3200mm extruder and SSS model
    PP non-woven fabric has become more and more popular in recent years.
    The main reason is that this kind of fabric is environmentally friendly without pollution and waste.
    Nonwoven fabric, also known as spunbonded nonwovens, is composed of directional or random fibers. It is a new generation of environmental protection materials. It has the characteristics of moisture-proof, breathable, flexible, light weight, non combustion, easy decomposition, non-toxic and non stimulating, rich color, low cost, reusable and so on.
    For nonwovens, there are different models, such as s, SS, SSS, SMS, SMMs and ssmms. The fabric is widely used in making shopping bags, hygiene, medical care and so on.
    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S

    Sss nonwoven fabric

    SSS Nonwoven Fabric
    Item

    G/m2

    specification

    1530456090120
    Allowable deviation(%)First class±8±7
    Final product±10±9
    Width deviation (%)First class+2.0 ,-1.0+2.0 ,-1.0
    Final product+2.5 ,-1.5+2.5 ,-1.5

    Fracture

    strength

    MD N/5cmFirst class1535506895130
    Final product1230456591108
    CD N/5cmFirst class102844648295
    Final product82538575790

    3200 SSS Model

    Effective Width3200mm
    Weight Range9 - 100 g / ㎡
    Out put daily24 - 30 ton
    Machine speed≦ 550 m / min
    Transformer≈ 1250 KVA
    Power Consumption650º - 800 º / Ton
    Machine Size50*20 * 12 M

    M Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm15-300G/㎡≈600KVA3000º-3500º/Ton800T
    2400mm15-300G/㎡≈800KVA3000º-3500º/Ton1100T
    3200mm15-300G/㎡≈1000KVA3000º-3500º/Ton1500T

    SMS Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm9-100G/㎡≈800KVA1300º-1600º/Ton3200T
    2400mm9-100G/㎡≈1250KVA1300º-1600º/Ton5100T
    3200mm9-100G/㎡≈1600KVA1300º-1600º/Ton7000T
    4000mm9-100G/㎡≈2000KVA1300º-1600º/Ton8700T
    4800mm9-100G/㎡≈2250KVA1300º-1600º/Ton10500T

    SMMS Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm9-100G/㎡≈1500KVA1700º-1900º/Ton4000T
    2400mm9-100G/㎡≈1600KVA1700º-1900º/Ton6200T
    3200mm9-100G/㎡≈2200KVA1700º-1900º/Ton8400T
    4000mm9-100G/㎡≈2500KVA1700º-1900º/Ton10500T
    4800mm9-100G/㎡≈2630KVA1700º-1900º/Ton12700T

    SMMMS Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm9-80G/㎡≈1600KVA1700º-1900º/Ton6200T
    2400mm9-80G/㎡≈2000KVA1700º-1900º/Ton8000T
    3200mm9-80G/㎡≈3000KVA1700º-1900º/Ton11000T
    4200mm9-80G/㎡≈3500KVA1700º-1900º/Ton14000T
    4800mm9-80G/㎡≈4000KVA1700º-1900º/Ton16000T

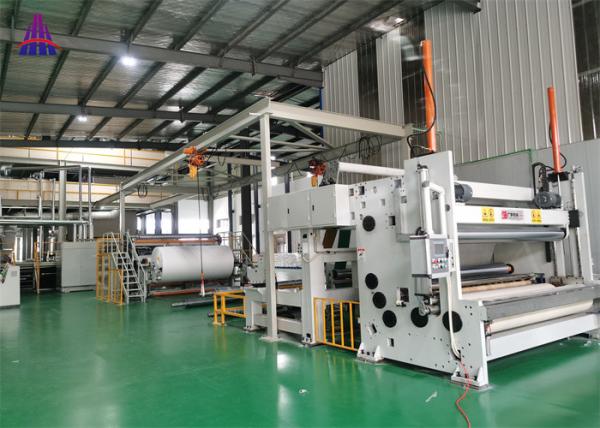

    Image of non woven fabric making line


    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S


    Description Of Non-woven Machine


    1) Parts of spunbonded nonwoven fabric production line:
    Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
    Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
    2) Spunbonded process and technical flow chart:
    Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
    Web forming---->Calendering---->Winding----> Cutting---->Final product


    Description Of Non-woven Machine


    1) Parts of spunbonded nonwoven fabric production line:
    Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
    Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
    2) Spunbonded process and technical flow chart:
    Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
    Web forming---->Calendering---->Winding----> Cutting---->Final product

    Main part of Nonwove system


    Candle filtration Machine

    Filtration Area: 3.5m²; Capacity: 650kgs/h; Filtration Chamber: 2 pcs (switch online); Original:CHINA;


    Spinning Pump

    Capacity:300-450Kg/H; Speed:40Rpm/Minute; Drive Motor:Siemens; Original: CHINA/GERMANY


    Automatic Slitting Machine

    Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;



    Raw Material Dosing Machine

    Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;


    Precisely CNC center hold machining parts beyond custmer request .

    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S


    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S


    Exhibition show with customer



    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S


    System Control PP Spunbond Nonwoven Fabric Machine 3200mm SSS SS S


    PACKING PROCESS


    We use a double packaging process of plastic and wood :first , we pack the machine parts i plastic so that they are protected from air and ranin , oxidaton or rust . The second part is packed with hard wood to weal the box , to avoid collision deformation , so that the machine handed over to you in good condition as new !




    Our Advantages


    Our Strengths:

    1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving.

    2.Focus on non woven equipment research and development in 14 years. Install and running more than 400 lines all over the world.

    3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.

    4.Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
