    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW

    Ask Lasest Price
    Brand Name : Chuzhou HH non-woven
    Model Number : SMS SMMS SSMMS S SS SSS
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : For detailed talk
    Delivery Time : For detailed talk
    • Product Details
    • Company Profile

    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW

    S/Ss/SSS/SMS/SMMS PP Spunbond Non Woven Fabric Making Machine


    HH Nonwoven Equipment Co.,Ltd.is a professional manufacture of
    PP spun bonded non-woven fabric production lines

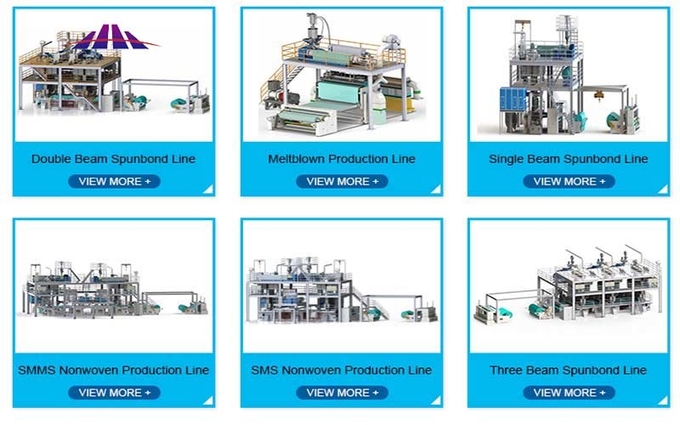

    we can making diffter type of machina and diffter size of nonwoven machine ,like :


    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    S Model (Packaging , Agricultural Cover )


    Working widthFabricConsumptionAnnual output/Year
    1600mm9-250G/㎡130KW1800T
    2400mm9-250G/㎡180KW2200T
    3200mm9-250G/㎡200KW3300T
    4000mm9-250G/㎡300KW4400T
    4800mm9-250G/㎡400KW5100T

    SS Model ( Baby Diaper ,Medical Products )


    Working widthFabricConsumptionAnnual output/Year
    1600mm9-120G/㎡200KW3700T
    2400mm9-120G/㎡2500KW5100T
    3200mm9-120G/㎡200KW6600T
    4000mm9-120G/㎡300KW8800T
    4800mm9-120G/㎡450KW10000T

    SSS Model


    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm9-100G/㎡≈630KVA650º-800º/Ton5800T
    2400mm9-100G/㎡≈1000KVA650º-800º/Ton7300T
    3200mm9-100G/㎡≈1250KVA650º-800º/Ton10000T
    4000mm9-100G/㎡≈1500KVA650º-800º/Ton12400T
    4800mm9-100G/㎡≈1800KVA650º-800º/Ton14000T

    M Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm15-300G/㎡≈600KVA3000º-3500º/Ton800T
    2400mm15-300G/㎡≈800KVA3000º-3500º/Ton1100T
    3200mm15-300G/㎡≈1000KVA3000º-3500º/Ton1500T

    SMS Model


    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm9-100G/㎡≈800KVA1300º-1600º/Ton3200T
    2400mm9-100G/㎡≈1250KVA1300º-1600º/Ton5100T
    3200mm9-100G/㎡≈1600KVA1300º-1600º/Ton7000T
    4000mm9-100G/㎡≈2000KVA1300º-1600º/Ton8700T
    4800mm9-100G/㎡≈2250KVA1300º-1600º/Ton10500T

    SMMS Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm9-100G/㎡≈1500KVA1700º-1900º/Ton4000T
    2400mm9-100G/㎡≈1600KVA1700º-1900º/Ton6200T
    3200mm9-100G/㎡≈2200KVA1700º-1900º/Ton8400T
    4000mm9-100G/㎡≈2500KVA1700º-1900º/Ton10500T
    4800mm9-100G/㎡≈2630KVA1700º-1900º/Ton12700T

    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW

    Description Of Non-woven Machine


    1) Parts of spunbonded nonwoven fabric production line:
    Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
    Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

    2) Spunbonded process and technical flow chart:
    Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
    Web forming---->Calendering---->Winding----> Cutting---->Final



    Machine parts introduction


    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    Name :Extrusion Machine
    Model : ¢130 / 150 / 170
    Heating System :electricity heating
    Drive Motor : Siemens
    Original : CHINA


    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    Name : Spinning beam

    Model : 1600 / 2400 / 3200 mm

    Heating System : Oil / Electricity Heating

    Distribution Design :big hanger type

    Original : CHINA


    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    Name upper / down drafting unit

    Effective Width : 1600 / 2400 / 3200 mm

    Filament fineness : 1.6 - 2.4 Denier

    Original : CHINA


    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    Name : Spinneret width

    Spinneret width : 256 mm

    Hole size : 0.45 nmm

    Hole Qty : 12350 - 24500 pcs

    Material : SUS 431

    Original : CHINA / GERMANY


    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    Name production line control cabinet

    Voltage:380 V / 3 phase

    Touch Scren : Siemens

    PLC :Siemens

    Frequency :Siemens

    Indicator :RKC , JAPAN

    Original : China


    Exhibition show




    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    Spunbond Fully Automatic Non Woven Making Machine 250gsm 130KW


    FAQ


    Q1: What made you choose HH?
    A: HH has a team of professional engineers directly to your factory to install our spun-bonded
    non-woven fabric making machine and melt-blown machine which high-speed, stable, and reliable
    to help you quickly establish your own production line.

    Q2: Are you a manufacturer?

    A: Yes, we are a professional manufacturer of nonwoven machinery. We also had established
    our own trading company to expand our foreign market business and provided our customer with
    better service.

    Q3: Do you accept OEM?

    A: Of course we are.

    Q4: How long is the warranty period?

    A: We provide 1 year warranty period.

    Q5: What's your packing?

    A: Large parts wrapped in several turns of films, small parts boxed in a wooden crate, each
    packaged is numbered and packed to easy loading/unloading and installation.

    Q6: Can customers send workers to your place to study the operation of the machine?

    A: Of course, you are warmly welcome.
