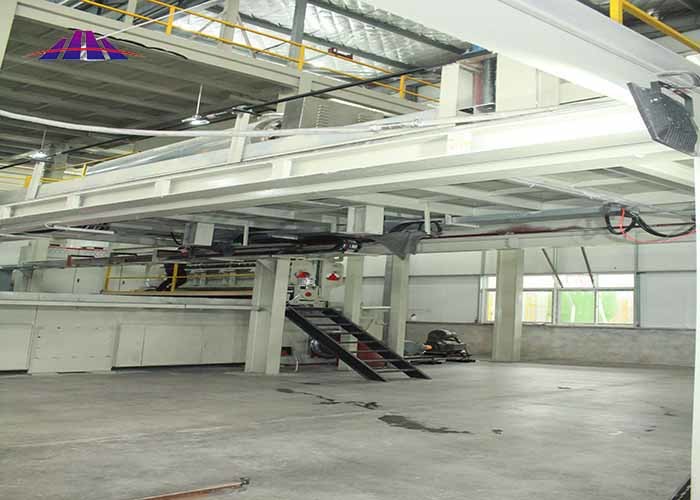

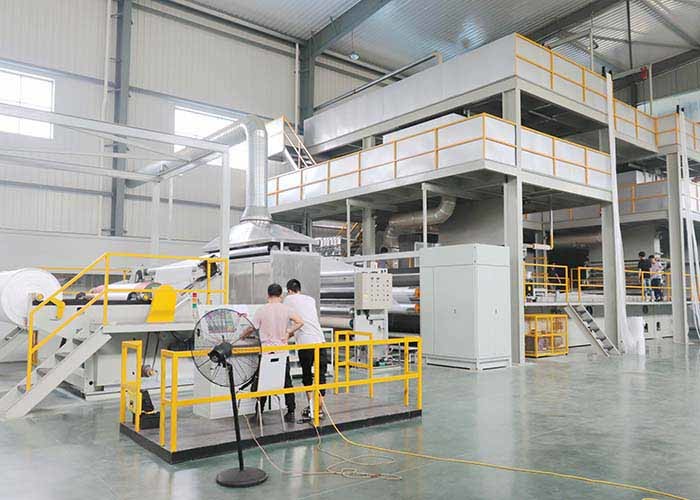

SMS SMMS PP spunbond NonWoven Fabric Making Machine Production Line
for Medical Products
1. Light weight: the main raw material is polypropylene resin, with
a proportion of only 0.9, only three fifths of that of cotton.
Plush. It feels very comfortable.
2. Softness: it is made of fine fibers (2-3D) and hot-melt bonding
of light spots. The finished product is soft and comfortable.
3. Drainage and air permeability: the polypropylene sheet does not
absorb water, the moisture content is zero, and the finished
product is well drained. 100% fiber composition, good porosity,
good air permeability, easy to keep the cloth dry and easy to
clean.
4. Non toxic and non irritating: This product uses food grade raw
materials in line with FDA standards, does not contain other
chemical components, has stable performance, is non-toxic, has no
peculiar smell and does not stimulate the skin.
5. Antibacterial and chemical resistant agent: polypropylene is a
chemical passivation substance, which is not eaten by insects and
can isolate the erosion of bacteria and insects in the liquid;
Antibacterial and alkali corrosion, the finished product will not
affect the strength due to corrosion.
6. Antibacterial properties. This product has water absorption
performance, does not mildew, and can isolate the erosion of
bacteria and insects in the liquid.
7. Good physical properties. It is spun from polypropylene,
directly laid into a net and thermally bonded. The strength of the
product is better than that of general short fiber products. The
strength is non directional, and the longitudinal and transverse
strength are similar.
application program
Spunbonded nonwovens are widely used in construction, agriculture,
medicine and health, packaging and covering, disposable commodity
clothing, decorative materials, civil engineering and other fields.
——Medical Protection
Wound care bandages and gauze, hospital robes and patient sheets,
masks, protective clothing
——Hygiene
Baby diapers and training pants, adult incontinence underwear,
underwear, women's care napkins, counter mats and tampons
——Packaging and Industry
Shopping bags, tarpaulins, tents, rice / sugar bags, luggage,
vacuum cleaner bags, leather mats, linings, shoulder pads, etc.
——Agriculture:
Shelter trees, shelters, garden shelters, etc.
Basic parameter
Materials: PP
Product width: 1600 mm
Product density: 10-150 g / m2
Product application
| Material | PP chip | Weight range | 10-150 g/m2 |
| Model | HHM-1.6SMMS/HHM-2.4SMMS HHM-3.2SMMS/HHM-4.0SMMS/HHM-4.8SMMS | Fabric usage | Medical applicant,shopping bag , packing Operation suit,face mask, baby diaper.etc |
Our Special Features for Our Production Line
1.Our whole production line is well-structured and easy to operate.
2. The whole line is highly automated.
3.Control elements are of well-know make, high performance and
reliable technologies.
4.The whole line are controlled by PLC and operated with
touch-screen.
5.The allocation of the main frame and auxiliary equipment can be
special designed and adjusted according to customers requirement.
Important data at a glance
Voltage | AC380V,50 Hz |
GSM RANGE | 10-100GSM |
MAX SPEED | 500m/min |
PRODUCTION CAPACITY | 5000ton/year |
Material | Polypropylene chips (meltblown PP MIF: 1500-1800; Spunbond PP MIF:
28-45) |
Product Width | 1600mm:10-100gsm |
Max. Roll Diameter | 1500mm |
Power Consumption | ≥800kw |
Air pressure | 0.5-0.8MPa |
Cooling water | 5m2/h,20℃ or 2.5m2/h,10℃ |
Equipment Size | 35m(L)X 18m(W)X 12m(H) |
| Spunmelt Composite Nonwovens Mainly Applications |
| Nonwoven Medical Product | Surgical drapes ,Surgeon’s mask ,etc . |
| Nonwoven Hygiene Product | Baby and adult diapers |
| Work protection product | Protctive clothing , breathing masks |
| Nonwoven Filtration product | Protective clothing , breathing masks |
working process
1. PREPARE OF RAW MATERIAL
2. LOADING MATERIAL TO HOPPER/DOSING SYSTEM
3. SCREW EXTRUDER FOR MELTING MATERIAL
4. MELTING FILTERIMPURITY; METERING ACCRODING FINISHED WEIGHT
5. SPUNBOND: SPINNING BOX AND SPINNERET; MELTBLOWN HEAD AND SYSTEM
6. COOLING AND STRETCHING SYSTEM
7. WEB LAPPER& CONVEYOR
8. CALENDER IN HIGH TEMPERATURE AND HIGHSPEED; WINDING& SETTING&
SLITTING& CUTTING
9. WAREHOUSE FOR FABRIC STORAG
SMS
Effective Width (mm) | Raw Material | GSM Range (g/sqm) | Max Speed (m/min) | Annual Capacity (Ton / year ) | Daily Capacity ( Ton / day ) | |
| 1600mm | Polypropylene(PP) |
9-100g | 350 | 3200T | 9T | |
| 2400mm | 5100T | 14T | |
| 3200mm | 7000T | 19T | |
| 4000mm | 8700T | 24T | |
SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical
Products)
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 15-250G/㎡ | 400KW | 3200T |
| 2400mm | 15-250G/㎡ | 600KW | 5100T |
| 3200mm | 15-250G/㎡ | 800KW | 7000T |
| 4000mm | 15-250G/㎡ | 1000KW | 8700T |
| 4800mm | 15-250G/㎡ | 1200KW | 10500T |
S Model (Packaging , Agricultural Cover )
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 9-250G/㎡ | 130KW | 1800T |
| 2400mm | 9-250G/㎡ | 180KW | 2200T |
| 3200mm | 9-250G/㎡ | 200KW | 3300T |
| 4000mm | 9-250G/㎡ | 300KW | 4400T |
| 4800mm | 9-250G/㎡ | 400KW | 5100T |
SS Model ( Baby Diaper ,Medical Products )
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 9-120G/㎡ | 200KW | 3700T |
| 2400mm | 9-120G/㎡ | 2500KW | 5100T |
| 3200mm | 9-120G/㎡ | 200KW | 6600T |
| 4000mm | 9-120G/㎡ | 300KW | 8800T |
| 4800mm | 9-120G/㎡ | 450KW | 10000T |
Parts of spunbonded nonwoven fabric production line:
Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction
device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air
chamber→stretching device→Web former→Calender→Winder→Slitter
Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)→Raw
material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web
forming→Calendering→Winding→Cutting→Final product
Parts of Melt blown nonwoven fabric production line:
Main extruder→filter→Metering pump→Air heating system→Melt blown
sprayer (ENKA sprayer)→Web former→Winder→Slitter
Melt blown process and technical flow chart:
Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web
forming→Winding→Cutting→Final product
Main parts of SMS SMMS non woven system .
The role of spinneret is to transform viscous flow of polymer melt
or solution into small section with special section, and solidify
through solidified medium, such as air or solidification bath. It
is used for the uniform exit of the tow.
Draft divice , including up draft and down draft .spinning allows
the thread to reach the right thickness through preciss drafting
devices.
Raw Material Dosing Machine
Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding
Percentage: 1-99%; Original:USA/ITALY;
Meltblown heater
Melting injection cloth heater is an electric heating device
installed in a tube insulation container to heat gas and
liquid.Melting-blown cloth heater has fast heating speed, good
insulation performance and high heating temperature.
Spinning Beam
Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating;
Distribution Design: big hanger type; Original:CHINA;
Extrusion Machine
Aperture:90 300kg/h 1pc;
Heating System: electricity heating; Drive Motor: Siemens;
Original:CHINA;
Automatic Winding Machine
Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute
Rolling Diameter:2000 mm Original: CHINA
Production Line Control Cabinet
Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens;
Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;
High precisely CNC center hold machining parts beyond customer
requirest .
Exhibition show with customer
Shipping and packing
Be Coated with anti-corrosion oil, and covered with plastic film,
then packed in wooden box.
