antibacterial softness SMS SMMS SS SSS spunbond meltblown PP
polypropylene non woven production line
SMS Disposable medical Mask special breathable PP Spunstick 25G-30
White Cosmetics Blue
Non-woven fabric features: durable, disposable use. Insulated or
not conducting electricity. Flexibility, stiffness. Precision,
scalability. Anisotropy, anisotropy. Filter, air permeability and
water resistance. Flexibility, rigidity. Light, loose and warm.
Thin as cicadas, thick as felt. Waterproof and moisture permeable.
Ironing, stitching and shaping. Flame retardant and antistatic.
Breathable, waterproof, wear-resistant, fluffy. Wrinkle resistance,
good elasticity, high moisture absorption, waterproof
Categories of use: bed sheets, hats, protective clothing, masks,
baby diapers, adult diapers, female sanitary napkins, nursing pads,
surgical cloths, clothing bags, pet pads.
Specification: 8G-70g, width 2.4m-3.2m (can be cut in small size)
Product category: ordinary waterproofing agent, ordinary water,
soft water, soft water, soft water, soft water, soft water, soft
water, soft soft, soft soft.
Color specifications: White, blue, lake blue, light blue, green,
light green, pink.
Grinding grain: sesame point
Date base
| Model | Effective Width | Weight Range | Output per day | Machine speed | Tranformer | Power consumption | Machine Size |
| HHM-1.6SMS | 1.6M | 9-100G/M2 | 6-10Ton | ≦350m/min | ≈800KVA | 1300º-1600º/Ton | 45M*20M*12M |
| HHM-2.4SMMS | 2.4M | 9-100G/M2 | 10-15Ton | ≦350m/min | ≈1250KVA | 1300º-1600º/Ton | 45M*23M*12M |
| HHM-3.2SMMS | 3.2M | 9-100G/M2 | 12-20Ton | ≦350m/min | ≈1600KVA | 1300º-1600º/Ton | 45M*25M*12M |
| HHM-4.0SMMS | 4.0M | 9-100G/M2 | 15-25Ton | ≦350m/min | ≈2000KVA | 1300º-1600º/Ton | 45M*28M*12M |
| HHM-4.8SMMS | 4.8M | 9-100G/M2 | 18-30Ton | ≦350m/min | ≈1000+1250KVA | 1300º-1600º/Ton | 4 5M*31M*12M |
Medical and health category: surgical clothing, operating table
cloth, patient clothing, protective clothing, respirator, packaging
bag, etc.
Labor safety articles: protective clothing, automobile and motor
protective cover, dust cover, painting work clothes, etc.
Tourist supplies: beach umbrella, beach clothes, recycling bags,
etc.
Cleaning supplies: baby diapers, adult incontinence pads, sanitary
napkins, filter materials, etc.
PP non-woven machine is designed and manufactured according to the
individual requirements of customers, which is equivalent to the 3
/ 4 model of reifenh ä user reicofil. Therefore, their possible
application fields are also wide.
PP non-woven machine has the characteristics of less investment,
compact structure, small floor area, simple production process,
simple operation, labor saving, wide compatibility and so on.
| Machine Model | Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS,
SXS,SXXS,SMMS ,SMS ,SSMMS |
| Machine Size | 18m-60m(L)*10m-31m(W)*10m-12m(H) |
| Raw Material required | PP(polypropylene),additives MFI/MFR:25-40g/10min(spunbonding process) MFI/MFR:800-2000g/10min (Melt-blowning process) |
| Effective width | 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by
requirements |
| Max Speed | 150m/mn-550m/min |
| Transformer&Power consumption | Transformer require:200KVA-3000KVA Power consumption :500KWH/Ton-1400KWH/Ton |
| Output per year | 1500 Tons - 10000 Tons |
| Products GSM | 8gsm-250 gsm |
| Applications of products | Industrial:Shopping bags, furniture ,agriculture ,packageing,etc Medical:Surgical gown /cap /sheet /mask ,etc Hygiene: Diapers ,sanitary ,napking , etc. |
| Spunmelt Composite Nonwovens Mainly Applications |
| Nonwoven Medical Product | Surgical drapes ,Surgeon’s mask ,etc . |
| Nonwoven Hygiene Product | Baby and adult diapers |
| Work protection product | Protctive clothing , breathing masks |
| Nonwoven Filtration product | Protective clothing , breathing masks |
Process flow:
Parts of spunbonded nonwoven fabric production line:
Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction
device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air
chamber→stretching device→Web former→Calender→Winder→Slitter
Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)→Raw
material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web
forming→Calendering→Winding→Cutting→Final product
Parts of Melt blown nonwoven fabric production line:
Main extruder→filter→Metering pump→Air heating system→Melt blown
sprayer (ENKA sprayer)→Web former→Winder→Slitter
Melt blown process and technical flow chart:
Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web
forming→Winding→Cutting→Final product
Installed power: 600KW
Web width: 3200mm
Max. winding diameter: ф1200mm
Annual output: 3000tons (50g/m2)
Single filament titer: ≤2.5 denier
Web weight: 10-200g/m2
Max. mechanical speed: 0-120m/min (Process speed:10-100m/min)
Electric consume: 700KWH(for 1ton product)
Workers and power
Number of workers: 3-4persons
External power supply: 500KVA
Water system: 0.2Mpa
Sms fabric is Durability, disposable. Insulation, not conductive. Softness,
stiffness. Fineness and expansibility. Isotropy, anisotropy Filter,
breathable and impervious to water. Flexibility, stiffness. Light,
loose, warm. Thin as cicada wings, thick as felt. Waterproof and
moisture permeable. Ironing, stitching, molding. Flame retardant,
antistatic. Water permeable, waterproof, wear-resistant and fleece
resistant. Wrinkle resistance, good elasticity, high moisture
absorption, water repellent.
1.Parts of nonwoven fabric production line:
Meltblown Die
The die for the extrusion of the spinneret in the melted process
.Auto Winder
Machine
The main function is to wrap the hot rolled fabric into a certain
volume."
Slitter&Cutter
The main function for a large package of cloth cutting according to
customer specifications, to meet the customer's length, width,
volume weight requirements.
Air Compressor
It is the main body in the gas source device. It is the device that
converts the mechanical energy of the motor into the gas pressure
energy, and it is the pressure generator of the compressed air. It
is used to control instruments and automation devices.
Upper Stretching
Make the tow tensioned.
Lower Stretching
Device
Make the tow even more uniform before entering the netting machine"
Chiller/
Refrigerating
Control the pressure oil temperature of oil pressure system,
stabilize oil temperature and oil pressure, prolong oil use time,
improve the efficiency of mechanical lubrication and reduce wear.
Freeze dry air to guarantee the quality of the product.
2.SMS Nonwovens Fabric Mainly Application :
Precisely CNC center hold machinning parts beyond customer request
Exhibition show with customer
Shipping and package
After-sales service
Installation:
The seller will send 2 or 4 engineers to install, test the
production line and train customers’ workers in buyers’ factory. It
will take 1 month for whole installation and training.
WE FOCUS ON MANUFACTURING OF RELIABLE NONWOVEN LINES SINCE 1990!
HH Machinery is one of the leading and competitive providers of
complete nonwoven line worldwide.
We mainly manufacture spunbond nonwoven lines and spunmelt
(spunbond & meltblown) lines.

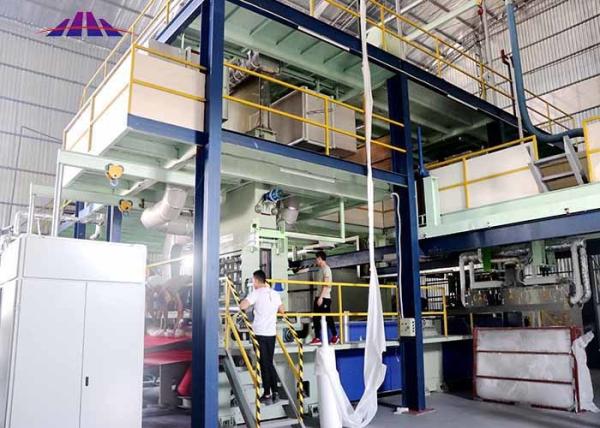

The HH 1.6 SMS making line is suitable to the production of
nonwoven fabric by spun-laid and hot-rolled reinforcement.With PP
as its main material ; color master batch, antioxidant,fire
retardant as its additives to produce nonwoven fabric with
different colors and different elements to fit the needs of
different usages.This machine is able to produce SMS spun-melting
nonwoven fabric , SS spunbonded nonwoven fabric,S spunbonded
nonwoven fabric and M melt blown nonwoven fabric
Welcome vist us

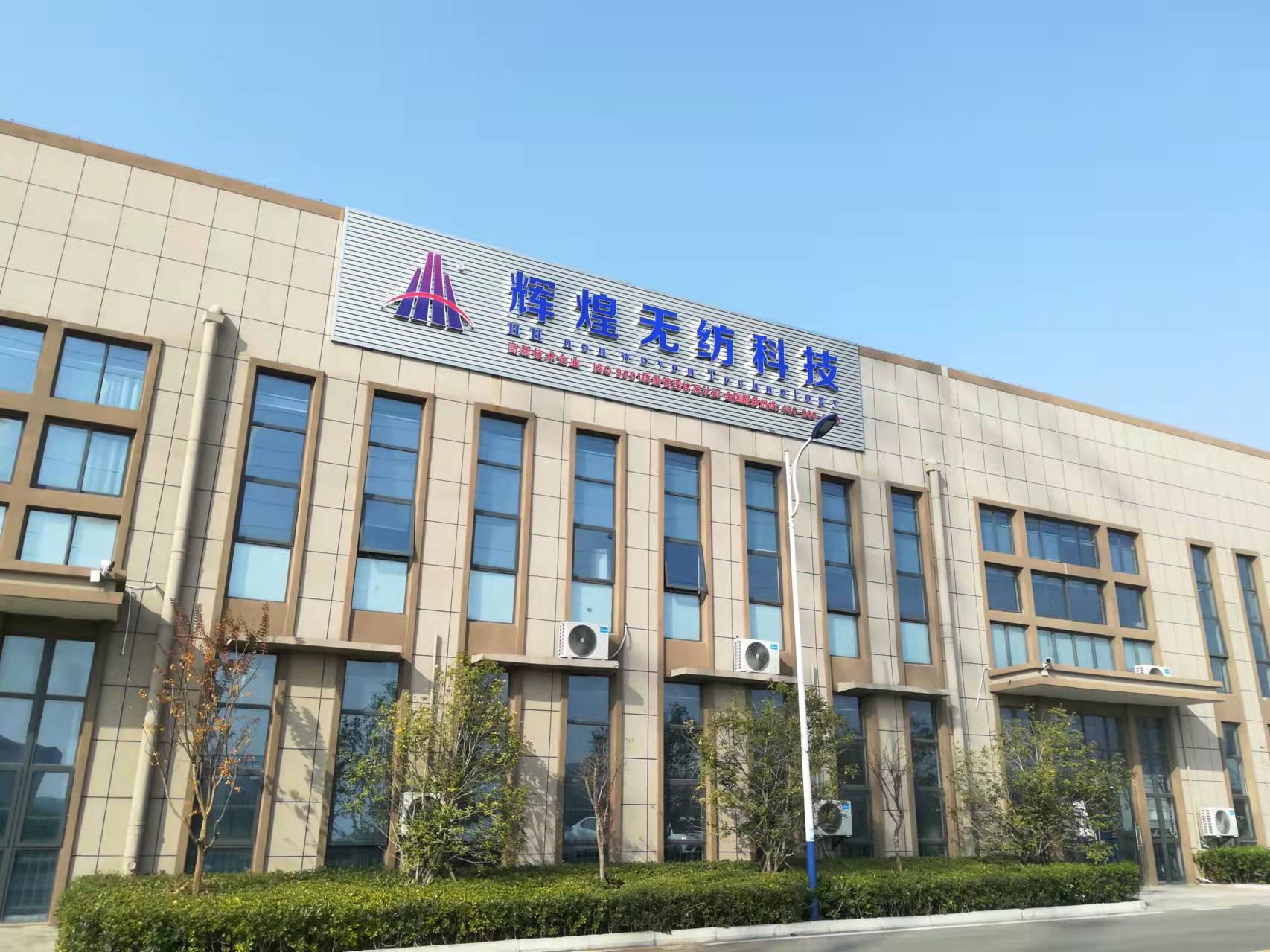

HH non-woven machinery Co., Ltd. is a professional non-woven
machinery manufacturing enterprise integrating non-woven production
line design, installation, commissioning, technical transformation
and non-woven production. The company has a group of professional
engineers and technical backbone with more than 10 years of
experience, specializing in the research, design and manufacture of
various specifications of polypropylene (PP) spunbond production
lines, including ssmms, SMS, SSS, and SS, S.
