    120gsm 4m PP Spunbond Nonwoven Fabric Machine High Speed

    Ask Lasest Price
    Brand Name : PP Spunbond Nonwoven Production Line SMS SSMMS S SS SSS
    Model Number : SMS SMMS SSMMS S SS SSS
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : For detailed talk
    Delivery Time : For detailed talk
    • Product Details
    • Company Profile

    120gsm 4m PP Spunbond Nonwoven Fabric Machine High Speed

    hydrophilia SMS SMMS SS SSSspunbond meltblown high speed PP polypropylene non woven production line


    PP non-woven machine is designed and manufactured according to the individual requirements of customers, which is equivalent to the 3 / 4 model of reifenh ä user reicofil. Therefore, their possible application fields are also wide.
    PP non-woven machine has the characteristics of less investment, compact structure, small floor area, simple production process, simple operation, labor saving, wide compatibility and so on.
    120gsm 4m PP Spunbond Nonwoven Fabric Machine High Speed

    Machine ModelReifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
    Machine Size18m-60m(L)*10m-31m(W)*10m-12m(H)
    Raw Material required

    PP(polypropylene),additives

    MFI/MFR:25-40g/10min(spunbonding process)

    MFI/MFR:800-2000g/10min (Melt-blowning process)

    Effective width1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
    Max Speed150m/mn-550m/min
    Transformer&Power consumption

    Transformer require:200KVA-3000KVA

    Power consumption :500KWH/Ton-1400KWH/Ton

    Output per year1500 Tons - 10000 Tons
    Products GSM8gsm-250 gsm
    Applications of products

    Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

    Medical:Surgical gown /cap /sheet /mask ,etc

    Hygiene: Diapers ,sanitary ,napking , etc.


    Spunmelt Composite Nonwovens Mainly Applications
    Nonwoven Medical ProductSurgical drapes ,Surgeon’s mask ,etc .
    Nonwoven Hygiene ProductBaby and adult diapers
    Work protection productProtctive clothing , breathing masks
    Nonwoven Filtration productProtective clothing , breathing masks

    Details parameter


    ModelEffective WidthWeight RangeOutput per dayMachine speedTranformerPower consumptionMachine Size
    HHM-1.6SMS1.6M9-100G/M26-10Ton≦350m/min≈800KVA1300º-1600º/Ton45M*20M*12M
    HHM-2.4SMMS2.4M9-100G/M210-15Ton≦350m/min≈1250KVA1300º-1600º/Ton45M*23M*12M
    HHM-3.2SMMS3.2M9-100G/M212-20Ton≦350m/min≈1600KVA1300º-1600º/Ton45M*25M*12M
    HHM-4.0SMMS4.0M9-100G/M215-25Ton≦350m/min≈2000KVA1300º-1600º/Ton45M*28M*12M
    HHM-4.8SMMS4.8M9-100G/M218-30Ton≦350m/min≈1000+1250KVA1300º-1600º/Ton4 5M*31M*12M

    Parts of spunbonded nonwoven fabric production line:


    Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter


    Spunbonded process and technical flow chart:


    Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product


    Parts of Melt blown nonwoven fabric production line:

    Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter


    Melt blown process and technical flow chart:

    Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product


    Feeding(suction,dosing and mixing) →Melt and extruding(with recycle extruder)→Filtering→Metering→Spinning→Quenching→Airdrawing→Forming→Calendering→Winding→Slitting→Product



    Installed power: 1600KW
    Web width: 3200mm
    Max. winding diameter: ф1200mm
    Annual output: 3000tons (50g/m2)
    Single filament titer: ≤2.5 denier
    Web weight: 10-200g/m2
    Max. mechanical speed: 0-120m/min (Process speed:10-100m/min)
    Electric consume: 700KWH(for 1ton product)

    Workers and power

    Number of workers: 3-4persons
    External power supply: 500KVA
    Water system: 0.2Mpa


    1.Parts of spunbonded nonwoven fabric production line:



    Spinneret

    The role of spinneret is to transform viscous flow of polymer melt or solution into small section with special section, and solidify through solidified medium, such as air or solidification bath. It is used for the uniform exit of the tow.


    Melting Filter


    A device used for placing a filter to filter impurities from the PP melt"


    Meltblown Die

    The die for the extrusion of the spinneret in the melted process


    Air Heater

    A complete set of devices used to convert electrical energy into heat energy


    Air Compressor

    It is the main body in the gas source device. It is the device that converts the mechanical energy of the motor into the gas pressure energy, and it is the pressure generator of the compressed air. It is used to control instruments and automation devices


    2.SMS Nonwovens Fabric Mainly Application :

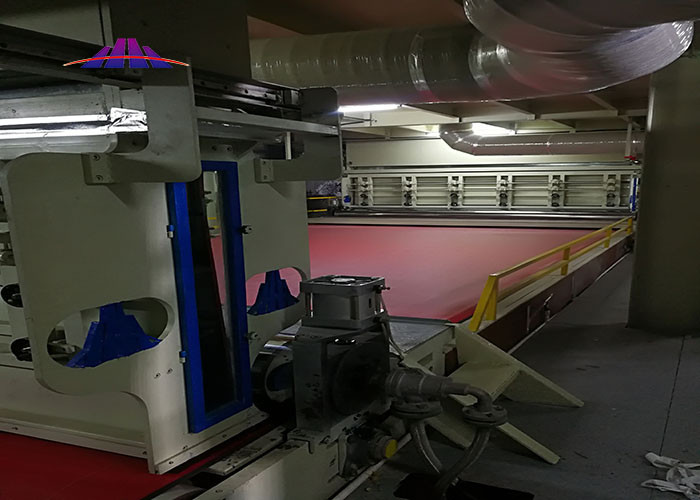

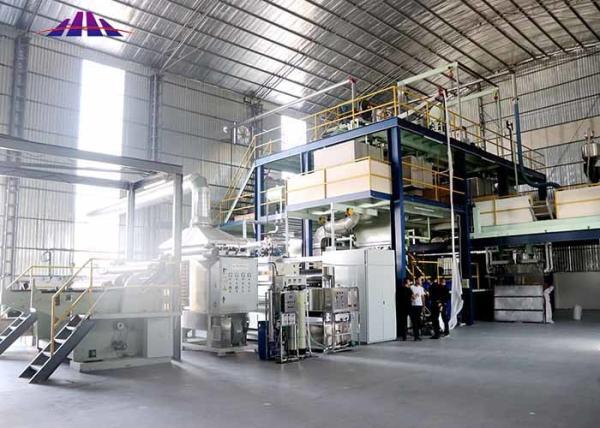

    4, Image of our Machine line :


    120gsm 4m PP Spunbond Nonwoven Fabric Machine High Speed


    High precisely CNC center hold machinning parts beyond customer request


    120gsm 4m PP Spunbond Nonwoven Fabric Machine High Speed


    120gsm 4m PP Spunbond Nonwoven Fabric Machine High Speed


    Exhibition Show




    Package and shipping


    120gsm 4m PP Spunbond Nonwoven Fabric Machine High Speed



    Sms fabric is Durability, disposable. Insulation, not conductive. Softness, stiffness. Fineness and expansibility. Isotropy, anisotropy Filter, breathable and impervious to water. Flexibility, stiffness. Light, loose, warm. Thin as cicada wings, thick as felt. Waterproof and moisture permeable. Ironing, stitching, molding. Flame retardant, antistatic. Water permeable, waterproof, wear-resistant and fleece resistant. Wrinkle resistance, good elasticity, high moisture absorption, water repellent.


    WE FOCUS ON MANUFACTURING OF RELIABLE NONWOVEN LINES SINCE 1990!


    HH Machinery is one of the leading and competitive providers of complete nonwoven line worldwide.

    We mainly manufacture spunbond nonwoven lines and spunmelt (spunbond & meltblown) lines.

    The HH 1.6 SMS making line is suitable to the production of nonwoven fabric by spun-laid and hot-rolled reinforcement.With PP as its main material ; color master batch, antioxidant,fire retardant as its additives to produce nonwoven fabric with different colors and different elements to fit the needs of different usages.This machine is able to produce SMS spun-melting nonwoven fabric , SS spunbonded nonwoven fabric,S spunbonded nonwoven fabric and M melt blown nonwoven fabric


    Welcome vist us


    HH Nonwovens Machinery CO., LTD.is professional in manufacturing and selling PP spunbonded and meltblown nonwoven fabric making machine. With the stable quality and easy operation of the nonwoven production line, our regular product includes single beam, double beam, SSS, SMS, SMMS, SSMMS and etc., regular width is 1600mm, 2400mm, 3200mm,4000mm,4200mm...
