SMS SMMS SSMMS automatic PP spunbond non woven production line

This Produce line is filament polypropylene fiber spun bonded nonwoven fabrics equipment. Its raw material is polypropylene (PP), take the principle of spinning man-made fibers, during polymer filature, continuous filament is extended into fiber net, which is finished by mechanical hot pressing, The machine assembly we adopt is now advanced veneer integer slot air flow draw technology, the whole process from material feeding to cloth output is automatic control, short production flow, high working efficiency.

The nonwoven fabrics we produce has high strength, good softness, innocuity, bacterium-proof, corrosion resistance, high-level draw strength and elongation rate, They are widely used for dress, decoration materials, medical sanitation materials, daily life products and in the industrials, agriculture fields. In additional, this production line can produce nonwoven fabrics of different color, different grams,different lines according to users’ requirements.

Lines on nonwoven fabrics: dots, cross line, straight lines, weight:10-200g/m2

Raw material: Polypropylene chips

(melt index:20-40g/10min, melt point:166℃, ash content: ＜ 0.15-0.25%)

Process flow:

Feeding(suction,dosing and mixing) →Melt and extruding(with recycle extruder)→Filtering→Metering→Spinning→Quenching→Airdrawing→Forming→Calendering→Winding→Slitting→Product
Installed power: 600KW
Web width: 3200mm
Max. winding diameter: ф1200mm
Annual output: 3000tons (50g/m2)
Single filament titer: ≤2.5 denier
Web weight: 10-200g/m2
Max. mechanical speed: 0-120m/min (Process speed:10-100m/min)
Electric consume: 700KWH(for 1ton product)

Workers and power

Number of workers: 3-4persons
External power supply: 500KVA
Water system: 0.2Mpa

Details parameter

1.Parts of spunbonded nonwoven fabric production line:

Spinneret

The role of spinneret is to transform viscous flow of polymer melt or solution into small section with special section, and solidify through solidified medium, such as air or solidification bath. It is used for the uniform exit of the tow.

Melting Filter

A device used for placing a filter to filter impurities from the PP melt"

Meltblown Die

The die for the extrusion of the spinneret in the melted process

Air Heater

A complete set of devices used to convert electrical energy into heat energy

Air Compressor

It is the main body in the gas source device. It is the device that converts the mechanical energy of the motor into the gas pressure energy, and it is the pressure generator of the compressed air. It is used to control instruments and automation devices

Upper Stretching Make the tow tensioned."

Lower Stretching Device Make the tow even more uniform before entering the netting machine

Auto Winder

Machine

The main function is to wrap the hot rolled fabric into a certain volume

SMS Fabric Application:

Sms fabric is Durability, disposable. Insulation, not conductive. Softness, stiffness. Fineness and expansibility. Isotropy, anisotropy Filter, breathable and impervious to water. Flexibility, stiffness. Light, loose, warm. Thin as cicada wings, thick as felt. Waterproof and moisture permeable. Ironing, stitching, molding. Flame retardant, antistatic. Water permeable, waterproof, wear-resistant and fleece resistant. Wrinkle resistance, good elasticity, high moisture absorption, water repellent.

WE FOCUS ON MANUFACTURING OF RELIABLE NONWOVEN LINES SINCE 1990!

HH Machinery is one of the leading and competitive providers of complete nonwoven line worldwide.

We mainly manufacture spunbond nonwoven lines and spunmelt (spunbond & meltblown) lines.

The HH 1.6 SMS making line is suitable to the production of nonwoven fabric by spun-laid and hot-rolled reinforcement.With PP as its main material ; color master batch, antioxidant,fire retardant as its additives to produce nonwoven fabric with different colors and different elements to fit the needs of different usages.This machine is able to produce SMS spun-melting nonwoven fabric , SS spunbonded nonwoven fabric,S spunbonded nonwoven fabric and M melt blown nonwoven fabric

Image of our Machine line :

Exhibition Show

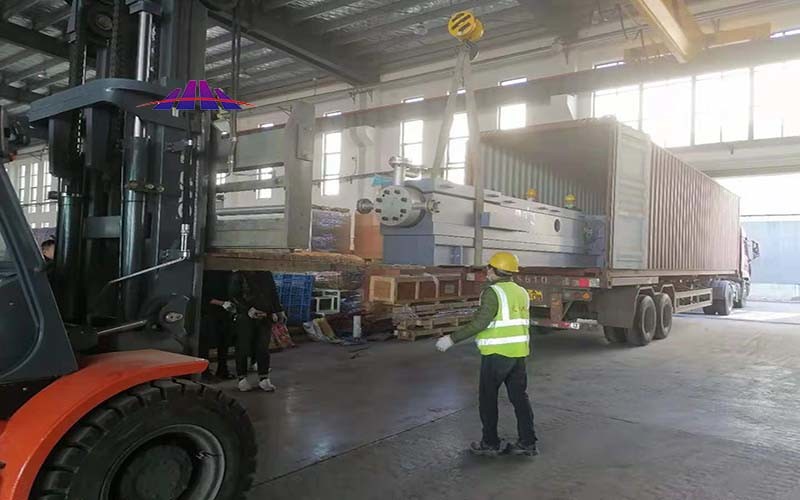

Package and shipping

FAQ

1.Where is your factory located? How can I visit there?
Our factory is located in Chuzhou City, Anhui Province, China, about 2 hours high speed train from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.

2.What type of payment do you have available?
We accept TT and L/C,as sample order,the Paypal,Western nion,Money gram and Aliexpress is available.

3..How can I get some samples?
We are honored to offer you samples. we can offer sample price to your same to wholesale price in the first time

4.How does your factory do regarding quality control?
our people always attach great importance to quality controlling from the very beginning to the very end.

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.

CHUZHOU HH Non Woven Technology CO.,LTD is professional in manufacturing and selling PP/PET spunbonded and meltblown nonwoven fabric making machine.

With the stable quality and easy operation of the nonwoven production line, our regular product includes single beam, double beam, SSS, SMS, SMMS, SSMMS and etc., regular width is 1600mm, 2400mm, 3200mm,4000mm,4200mm;

Varies applications for shopping bags, home decoration, medical area, hygiene area, agricultrue, and etc.

We have good reputation in spunbond area not even in China but also in other country, we have supplied to China domestic, India, Pakistan, Turkey, Russia, Australia, and etc.

We insist on customer-focused, quality-first, best after-sale service, expecting the cooperation with you.

1) The whole line is well-structured and easy to operate.

2) The whole line is highly automated.

3) Control elements are of well-know make, high performance and reliable technologies.

4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.

Features:

1)It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labor and widely compatibility and so on.

The equipment produces non-woven fabric with polypropylene(PP), adopts the technology of formating the web by negative pressure, make into PP spun-bonded non-

woven fabric, the product is featured by uniform cover, great intensity, good ventilation and good feeling and so on. It has been in wide use in medical clothes, package and architecture and so on.

2)The lower investment can reduce some unnecessary additional auxiliary facilities, and under the conditions of guaranteeing the technology requirement and safe production, can reduce the cost of the manufacture, so that we can reduce the investment lower.

3)Its easy and reliable to making technics adjustment, the line adopts the method of computer controlling assistant systems combines with human control to make the technics adjustment become more easier and reliable, and the machine can adapt to different raw materials to gain more widely usage.

4)The requirement of the workshop and equipment is very simple, it reduces the fixed assets investment, and efficiently take the advantage of the room of the platform, and enlarge the utilization of the workshop and the steel platform.

5) More specialty in processing the main equipment increasing the procession precious and capacity of the machine, this reduces the manufacture cost and to undertake the quality of the product more well.

APPLICATION:

Medical Protect

Surgical gown&cap, patient clothes, bed sheet, pillow covers, face mask, glover, diaper, Shoe cover, curtains, etc.

Sanitary and Health

Baby diaper, feminine hygiene, hygiene pad, baby training trouser, incontinence pads. etc. Cover of the high absorbent material after hydrophilic treatment, diaper edge for preventing Leaking. Diaper backing after composite with other material etc

Packing and Industry

Shopping bag, tarpauins, tents, bag for rice/sugar, luggage, vacuum cleaner bag, buff pad, Interlining and cloth, shoulder padding etc.

Argriculture:

Cover tree, cope cover, garden cover etc.
