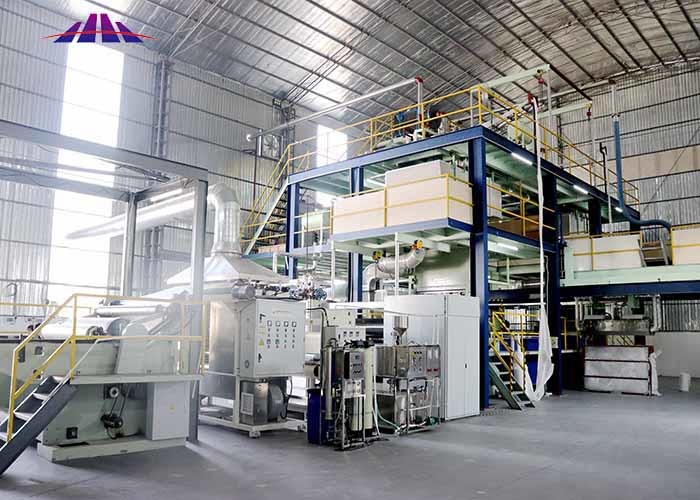

Surgical Gown SMS pp spunbond Nonwoven Fabric Making Machine production line

SMS pp Spunbond Non-Woven Production Line consists:

Extruder, filter, Melt pump, spinning box, stretching device, Suction fan, Calender, Winding, Unwinding, slitting device. All can be automatic.

Machine main data:

Raw material:PP, masterbatch, additives.

Final product width:1600mm

FIBER FINENESS: ≤2.2den

Output:330kg/h (according to 15g/square eter,1.6M width)

Fabric weight: 13—150GSM square meter

Line speed:10—550 m/min

Application of spunbond fabricsSpunbond nonwovens are widely used in construction , agriculture, medicine and health , packaging and coverings, disposable commodities clothing, decorative materials, civil engineering, etc.

working process

1. PREPARE OF RAW MATERIAL

2. LOADING MATERIAL TO HOPPER/DOSING SYSTEM

3. SCREW EXTRUDER FOR MELTING MATERIAL

4. MELTING FILTERIMPURITY; METERING ACCRODING FINISHED WEIGHT

5. SPUNBOND: SPINNING BOX AND SPINNERET; MELTBLOWN HEAD AND SYSTEM

6. COOLING AND STRETCHING SYSTEM

7. WEB LAPPER& CONVEYOR

8. CALENDER IN HIGH TEMPERATURE AND HIGHSPEED; WINDING& SETTING& SLITTING& CUTTING

9. WAREHOUSE FOR FABRIC STORAG

SMS

SMS/SMMS/SSMS/SSMMS Model(Filtration Material, Baby Diaper ,Medical Products)

S Model (Packaging , Agricultural Cover )

SS Model ( Baby Diaper ,Medical Products )

Parts of spunbonded nonwoven fabric production line:

Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter

Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product

Parts of Melt blown nonwoven fabric production line:

Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter

Melt blown process and technical flow chart:

Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product

Raw Material Dosing Machine

Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;

Meltblown heater

Melting injection cloth heater is an electric heating device installed in a tube insulation container to heat gas and liquid.Melting-blown cloth heater has fast heating speed, good insulation performance and high heating temperature.

Spinning Beam

Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;

Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;

Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA

Production Line Control Cabinet

Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;

High precisely CNC center hold machining parts beyond customer requirest .

Exhibition show with customer

Shipping and packing

Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

FAQ

Q1: What's your warranty policy?
A1: The Seller will guarantee the machine for 18 months since the date of shipment (that is leaving from Seller's factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.

Q2: What's your minimum order quantity?
A2: Min order quantity: 1 set or by negotiate with each other.

Q3: What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4: Do you have technical instruction if I buy your product?
A4: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still cannot be solved, welcome to contact us for help.

Q5: What is your overseas service?
A5: We will provide high quality overseas service, our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.

Q6: Will you conduct training for our staff here?
A6: Yes, we will provide technology support to factory technology, training for the relative person.

Q7: What are your terms of payment?
A7: We accept T/T.

Q8: How does your factory do regarding quality control?
A8: Quality is priority. We always attach great importance to quality controlling from the beginning. And we have CE certificate.

Q9: How does your factory control the quality?
A9: We have the professional QC group inspect the details in each process. After finishing the goods, our QC will inspect piece by piece.

Q10: I am very satisfied after I read your FAQ, how can I start to purchase my order?
A10: Please click the "send" at the bottom of this page or contact our sales on Trade Mange online!


Dear friend:
Welcome you purchase our standard products or send us your OEM and ODM requests. You will be impressed by our superior quality, quick delivery date and attractive price. If any question about non-woven machine, contact me at any time, please!

CHUZHOU HH Non Woven Technology CO.,LTD is professional in manufacturing and selling PP/PET spunbonded and meltblown nonwoven fabric making machine.

With the stable quality and easy operation of the nonwoven production line, our regular product includes single beam, double beam, SSS, SMS, SMMS, SSMMS and etc., regular width is 1600mm, 2400mm, 3200mm,4000mm,4200mm;

Varies applications for shopping bags, home decoration, medical area, hygiene area, agricultrue, and etc.

We have good reputation in spunbond area not even in China but also in other country, we have supplied to China domestic, India, Pakistan, Turkey, Russia, Australia, and etc.

We insist on customer-focused, quality-first, best after-sale service, expecting the cooperation with you.

1) The whole line is well-structured and easy to operate.

2) The whole line is highly automated.

3) Control elements are of well-know make, high performance and reliable technologies.

4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.

Features:

1)It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labor and widely compatibility and so on.

The equipment produces non-woven fabric with polypropylene(PP), adopts the technology of formating the web by negative pressure, make into PP spun-bonded non-

woven fabric, the product is featured by uniform cover, great intensity, good ventilation and good feeling and so on. It has been in wide use in medical clothes, package and architecture and so on.

2)The lower investment can reduce some unnecessary additional auxiliary facilities, and under the conditions of guaranteeing the technology requirement and safe production, can reduce the cost of the manufacture, so that we can reduce the investment lower.

3)Its easy and reliable to making technics adjustment, the line adopts the method of computer controlling assistant systems combines with human control to make the technics adjustment become more easier and reliable, and the machine can adapt to different raw materials to gain more widely usage.

4)The requirement of the workshop and equipment is very simple, it reduces the fixed assets investment, and efficiently take the advantage of the room of the platform, and enlarge the utilization of the workshop and the steel platform.

5) More specialty in processing the main equipment increasing the procession precious and capacity of the machine, this reduces the manufacture cost and to undertake the quality of the product more well.

APPLICATION:

Medical Protect

Surgical gown&cap, patient clothes, bed sheet, pillow covers, face mask, glover, diaper, Shoe cover, curtains, etc.

Sanitary and Health

Baby diaper, feminine hygiene, hygiene pad, baby training trouser, incontinence pads. etc. Cover of the high absorbent material after hydrophilic treatment, diaper edge for preventing Leaking. Diaper backing after composite with other material etc

Packing and Industry

Shopping bag, tarpauins, tents, bag for rice/sugar, luggage, vacuum cleaner bag, buff pad, Interlining and cloth, shoulder padding etc.

Argriculture:

Cover tree, cope cover, garden cover etc.
