    15gsm 25gsm 35gsm Meltblown Nonwoven Fabric Machine For Mask

    Ask Lasest Price
    Brand Name : Chuzhou HH non-woven
    Model Number : HH Meltblown
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : For detailed talk
    Delivery Time : 90 - 150 days
    • Product Details
    • Company Profile

    15gsm 25gsm 35gsm Meltblown Nonwoven Fabric Machine For Mask

    1600mm 2400 mm reliable high capacity meltblown melt blown nonwoven fabric making machine

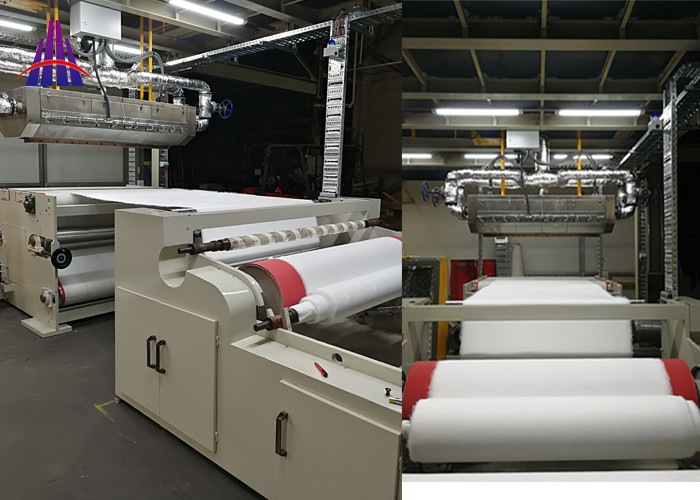

    Product details display
    Melt blowout machine PP melt blowout machine with electrostatic device process flow: polymer preparation - melt extrusion - metering pump - melt blowout die assembly - melt thin flow stretching - fiber cooling - auxiliary network - electrostatic electret - enhanced finished product 1600mm PP melt blowout cloth machine with electrostatic device Electrostatic device by melt blowout process production. Its equipment mainly includes: screw extruder, melt pump, net changer, melt-blown device, winding device, machine, air system (hot fan and heater),
    A1: The role of the screw extruder is to melt the slice material;
    A2: The function of the melt pump is to accurately measure and control fiber yield and fineness, and to deliver the melt continuously and evenly to the spinneret.
    The role of the mesh changer is to filter out impurities in the melt to avoid clogging the spinneret hole.
    A4: The function of winding device is to roll melt-blown cloth into rolls.
    A5: The function of the air system (hot fans and heaters) is to provide the temperature and pressure of the hot air used in spinning airflow drawing.
    Product introduction
    Melt-blown PP melt-blown machine based on synthetic polymers as raw material, after melt spinning directly into the net, with unique properties of melt-blown nonwoven fabric.

    15gsm 25gsm 35gsm Meltblown Nonwoven Fabric Machine For Mask


    Machine size1600mm2400mm
    Product width
    Output2000-3000KG/day(24hour)3000-4000KG/24hour
    Filament number2-8μm2-8μm
    Weight20-300g/²20-300g/²
    Line speed20-70m/min50-70m/min

    HHM-2400 Melt Blown line data

    Effective Width2400mm
    Weight Range15-300 g / ㎡
    Out put day3 - 4 ton
    Machine speed10-70 m/ min
    Transformer≈ 800 KVA
    Power consumption3000º - 3500º / ton
    Machine Size18 *11 *10 M

    HHM Melt Blown line catalog

    Effective Width1.6 M2.4 M3.2 M
    Weight Range18-300 G/㎡18-300 G/㎡18-300 G/㎡
    Out put day2-3 Ton3-4 Ton4.5-5 Ton
    Machine Speed≦40 m/min≦40 m/min≦40 m/min
    Power Consumption3000º-3500º/Ton3000º-3500º/Ton3000º-3500º/Ton
    Machine Size(L*W*H)18M*10M*10M18M*11M*10M18M*13M*10M

    Meltblown Nonwovens Mainly Applications
    Nonwoven Sanitary productFemale hygiene,child and baby hygiene,Incontinence products,pads ,Absorbing pads ,Functional inserts for controlled absorption
    Nonwoven Absorbents productAbsorbent cloths and wiping cloths,liquids (benzene,water ,blood),Media for oil absorption
    Nonwoven Filtration ProductAir ,Gas,liquids(benzene,water,blood),etc.


    Meltblown Nonwoven Production Line Specifications
    ItemSpecifications
    TypeMB1600,MB2400,MB3200
    Product width1600mm,2400mm,3200mm
    Output80kg/ hour,150kg/hour,200kg/hour
    Filament denier2~5 Micron
    GSM range8-300gsm
    Machine speed80m/min
    About Average Power Consumption1500~2000kw·h/t (Related with production Specification)
    Installed capacity400KW
    Main raw materialPolypropylene chip (PP)
    MFI400~1500 MFI(230°C)≥25g/10min
    400~1500 MFI(230℃)≥25g/10min
    Consumption of Raw Materials0.20%
    Product Quality StandardFollow up the National and trade standard of Spunbond non-woven
    Machine size18m*8m*12m


    Product NameSpunbond non-woven production lineTechnologyRhine ,Germany
    TypeM,S,SS,SSS,SMS,SSMS,SSMMSSpinneretSize 0.45mm,10500 holes
    Lead Time90 - 108 daysTrade typeManufacturer
    Payment15% deposit 80% before shipping 5 % after line runningPerfomance3 - 25 tons / day
    LocationChuzhou city Anhui province , ChinaWarranty1 year
    Near sea portNanjing / ShanghaiSIZE1600 - 4800 mm

    ModelEffective widthDaily capacitySpeedSpinning systemGSM RangeMachine dimension
    Length*Width*Height
    HH-1600M1600MM2000Kg70M/MinMeltblown15-30018*10*10 meter
    HH-2400M2400MM3000Kg18*11*10 meter
    HH-3200M3200MM4500Kg18*13*10 meter
    HH-1600S1600MM5000Kg150M/Min

    Spunbond

    (S)

    9-25018*8*12 meter
    HH-2400S2400MM7000Kg18*10*12 meter
    HH-3200S3200MM10000Kg18*15*12 meter
    HH-1600SS1600MM9000Kg350M/Min

    Spunbond

    (SS)

    8-15045*15*12 meter
    HH-2400SS2400MM13000Kg45*18*12 meter
    HH-3200SS3200MM16000Kg45*20*12 meter
    HH-1600SSS1600MM12000Kg550M/Min

    Spunbond

    (SSS)

    9-12050*15*12 meter
    HH-2400SSS2400MM16000Kg50*18*12 meter
    HH-3200SSS3200MM24000Kg50*20*12 meter
    HH-1600SMS1600MM10000Kg350M/Min

    Spunbond/

    Meltblown/

    Spunbond/

    9-10045*20*12 meter
    HH-2400SMS2400MM14000Kg45*23*12 meter
    HH-3200SMS3200MM18000Kg45*25*12 meter
    HH-1600SMMS1600MM12000Kg450M/Min

    Spunbond

    Meltblown

    Meltblown

    Spunbond

    9-10055*20*12 meter
    HH-2400SMMS2400MM17000Kg55*23*12 meter
    HH-3200SMMS3200MM23000Kg55*25*12 meter

    Melt blown process and technical flow chart:


    Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product



    Meltblown non-woven fabric production line components:


    Screw extruder---->filter---->metering pump---->heating system---->melt blown box (Kasen)---->netting machine---- >Rewind



    Raw Material Dosing Machine

    Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;


    Extrusion Machine

    Aperture:90 300kg/h 1pc;

    Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



    Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.



    Meltblown die head assembly

    maximum temperature: 300.;

    Max.output:200kg/h;

    Heating zone:8tod;

    Perforated length:3,350mm;

    HPI:40;

    1 Sets L/D=10; Number of holes:5.276;

    Capillary diameter:0.3mm;

    Capillary length:3,600mm;



    Meltblown heater

    Melting injection cloth heater is an electric heating device installed in a tube insulation container to heat gas and liquid.Melting-blown cloth heater has fast heating speed, good insulation performance and high heating temperature.



    Production Line Control Cabinet

    Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;


    High Precisely CNC center hold machining parts beyond customer request .




    Exhibition show with customer




    Packaging Details


    Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.




    How to start the Nonwoven fabric manufacturing business ?


    All potential buyers should check below factors if you want to produce nonwoven fabrics .

    • Enough project investment : This nonwoven fabric machine cost $200000 to $5000000 Ave.
    • Workshop space for nonwoven fabric machine 200 -500 ㎡,space length 30 meter , width 10 -20 meter , height 11 meter
    • Nonwoven fabric machine operation team 4 - 6 workers
    • Polypropylene raw material and additives 5 tons each day .
    • Stable electricity supply system 380 V.

    Our service


    1.Pre-sale Service


    Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
    With the support of modern technology, to provide all customers with the best solution machinery Claim.


    2.After-sales Service


    Our customer service can answer inquiries.
    We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."


    We Believe that only :Best Quality Machine With Innovative Ideas and Excellent After-sale Service:"shall meet your special requirements.
