easy operation cost effective lower investment M Meltblown nonwoven
fabric machine
The melt-blown system is suitable for making melt-blown fabric
cloth.
Characteristics of the
HH non-woven fabric provides a variety of models of non-woven
extrusion line for customers to choose. The effective width of the
product is up to 1600mm-3200mm. Fabric thickness can be adjusted
during production. Pp non-woven fabric is widely used in industry,
agriculture, medical care, labor insurance, irrigation printing,
aviation, footwear materials, packaging, daily necessities and
other fields.
HH Nonwoven M Model
| Effective width(mm) | 1600 | 2400 | 3200 |
| Output(ton/year) | 800T | 1100T | 1500T |
| GMS Range(g/㎡) | 15-300 | 15-300 | 15-300 |
| Max.speed(m/min) | 70 | 70 | 70 |
| NO | ITEM | Quantity |
| 1 | Suction and drying device | 1 set |
| 2 | Screw extruder | 1 set |
| 3 | Screw Changer | 1 set |
| 4 | Metering pumps | 1 set |
| 5 | Melt Pipe | 1 set |
| 6 | Combined type meltblown diehead (similar as Japanese Kasen
Technology ) | 1 set |
| 7 | Roots BLower | 1 Set |
| 8 | Air heater | 1 set |
| 9 | Suctin fan | 1 set |
| 10 | Connecting wind duct | 1 set |
| 11 | Receiving and netting device | 1 set |
| 12 | Slitting and Rolling device | 1 set |
| 13 | Electric control system | 1 set |
| 14 | Dual - electret treatment equipment | 1 set |
| 15 | Melt - blowing die head cleaning device | 1 set |
Technical Data:
| Product width: | 1600mm, effective width; |
| Monofilament fineness M: | (2 ~ 8) μm; |
| Adapt to the main raw material: | PP polypropylene slice MFI: 800 ~ 1500; |
| Product weight: | (20 ~ 100) g / ; |
| Uniformity of meltblown cloth: | CV≤8%; |
| Production speed: | ≤ 100 m / min; |
| Maximum capacity: | 1.0 ~ 1.5 tons / 24 hours / set (depending on the density of
monofilament fiber); |
Melt-blown cloth, commonly known as the "heart" of masks. Its main
raw material is polypropylene, a film made of many crisscrossed
fibers stacked in random directions. The diameter of the fiber
ranges from 0.5 to 10 microns, and the diameter of the fiber is
about 1/30 of the hair.
HHM Nonwoven can customize S, SS, SSS, M, SMS, SSMS, SMMS, SSMMS PP
nonwoven production lines, as well as PLA / PET / Bi-Component
nonwoven production lines.
There are the features of Meltblown Nonwoven Machine:
About the design:
Meltblown Nonwoven machine makes superfine fiber nonwoven fabrics.
Adopts advanced world famou brand components in pneumatic parts ,
electric parts , and operatin parts.
It is suitable for small or large tonnage production . and the
fabric is famous for fitrating & absorbing supplies.
The quality and the energy consumption keeps approximate to the
global leading brand , while the investment is far blowning .
PP melt-blown nonwoven cloth machine list:
No. Machine list Qty.
1. screw extruder 1set
2. Mould 1set
3. Spinneret plate 1set
4. Air heater 1set
5. Gas tank 1set
6. Air compressor 1set
7. Frozen type compressed air drying machine 1set
8. Web Former machine 1set
9. Slitting Machine 1set
10. Winder 1set
The fabrics also have good insulation, so the fabrics also widely
applied to industrial, agriculture, clothing even deadening
materials.
The main specifications of Meltblown Nonwoven Machine:
| Model No. | HHM |
| M(product width) | 1600 mm | 2400 mm | 3200 mm |
| Equipment size | 18x10x6 m | 18x10x6 m | 18x10x6 m |
| Speed | 150 m/min | 150 m/min | 150 m/min |
| Gram Weight | 5-300 g/m2 | 5-300 g/m2 | 5-300 g/m2 |
| Yield(Products according to 40 g/m2) | 3-6 T/DAY | 4-8 T/DAY | 5-10 T/DAY |
Parts of Melt blown nonwoven fabric production line:
Main extruder→filter→Metering pump→Air heating system→Melt blown
sprayer (ENKA sprayer)→Web former→Winder→Slitter
Melt blown process and technical flow chart:
Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web
forming→Winding→Cutting→Final product
Main parts of Meltblown system

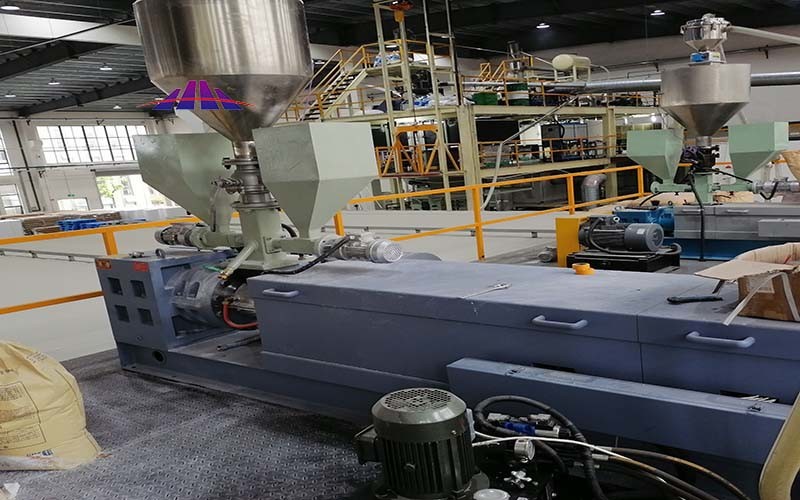

Name:Main Extruder
Brand:HHM
Original:China
Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,
Max speed: 75r/min for 1.6m , 85r/min for 3.2m
Motor:90kw for 1.6m , 132kw for 3.2m
air compressor
Boost pressure: 0.7MPa
Power: 120KW~200KW It is the main body in the gas source device. It
is the device that converts the mechanical energy of the motor into
the gas pressure energy, and it is the pressure generator of the
compressed air. It is used to control instruments and automation
devices.
The die for the extrusion of the spinneret in the melted process
The automatic metering and mixing to achieve color measurement
standard, uniform mixing, to ensure that the products of uniform
color.
.Ultrasonic Cleaner
It is mainly composed of ultrasonic transducer, ultrasonic
generator and cleaning tank. Compared with other cleaning,
ultrasonic cleaning has the following advantages: high washing
rate, short residue, short cleaning time and good cleaning effect.
Any cleaning part that can be immersed in liquid can be cleaned by
ultrasonic. The surface shape of the cleaning parts is not limited.

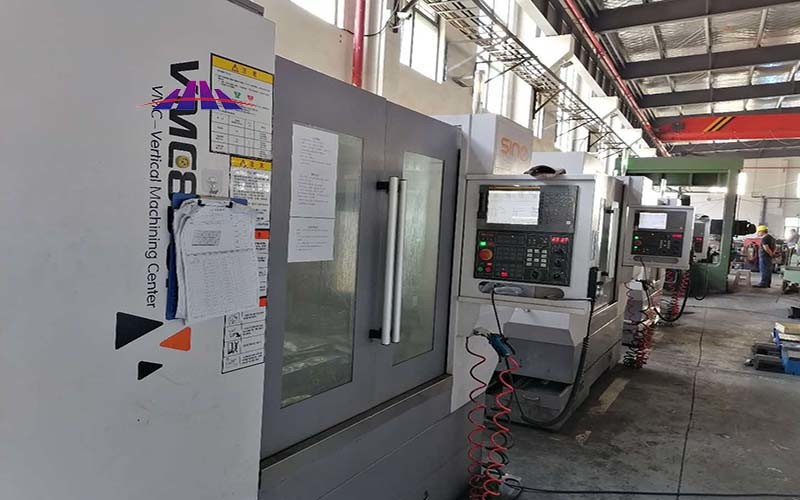

Precisely CNC center keep machining parts beyond customer request
Exhibition show
shipping and packing
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case
packaged.
Other machines nude packaging.
FAQ
Q. How I get right Machine for me , If I have no ideal about the
machine ?
A: It's does't matter. Tell me what kind of fabric that you want
the machine , how much you want to produce and factory szie etc. We
will design for you.
Q.I aready have one factory but there is a little of different in
the size ,For example the height can't meet the 13m , only 12m?
A:Don't worry. Your machine will be customized.
Q. How to make sure your machine's quality?how about the service?
A: warranty is one year. you can enjoy the service within
production lifetime.
