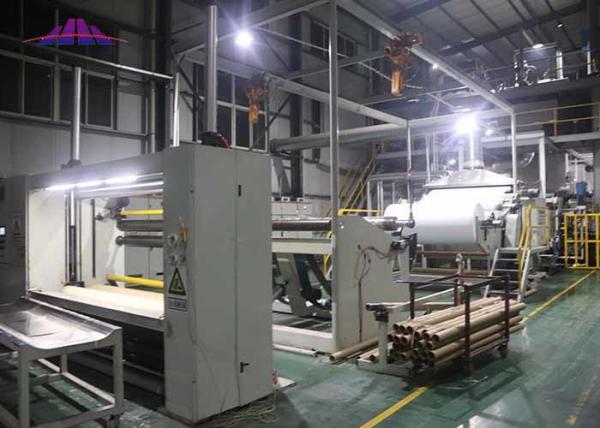

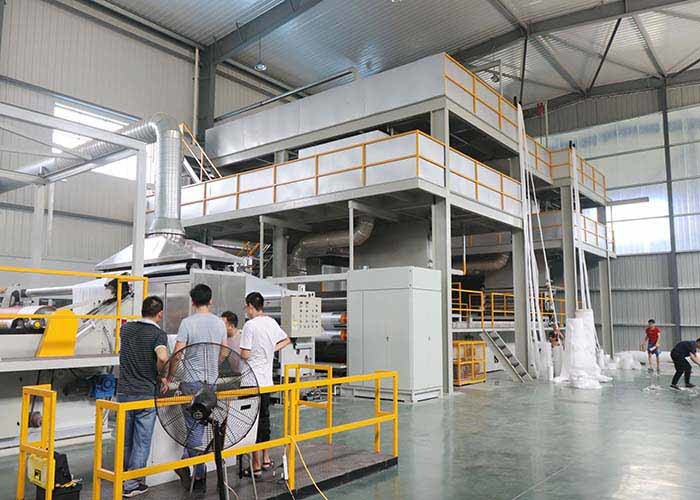

800KW Spunbond Non Woven Fabric Making Machine Polypropylene

    Buy cheap 800KW Spunbond Non Woven Fabric Making Machine Polypropylene from wholesalers

    Buy cheap 800KW Spunbond Non Woven Fabric Making Machine Polypropylene from wholesalers
    • Buy cheap 800KW Spunbond Non Woven Fabric Making Machine Polypropylene from wholesalers
    • Buy cheap 800KW Spunbond Non Woven Fabric Making Machine Polypropylene from wholesalers
    • Buy cheap 800KW Spunbond Non Woven Fabric Making Machine Polypropylene from wholesalers

    800KW Spunbond Non Woven Fabric Making Machine Polypropylene

    Ask Lasest Price
    Brand Name : Chuzhou HH non-woven
    Model Number : HHM - SS SSS
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : For detailed talk
    Delivery Time : For detailed talk
    • Product Details
    • Company Profile

    800KW Spunbond Non Woven Fabric Making Machine Polypropylene

    Polypropylene Spun Bonded Nonwoven Fabric making Machine Fully Automatic S Ss Sms Non Woven Fabric Machine


    Spunbonded nonwovens are widely used in construction, agriculture, medicine and health, packaging and covering, disposable articles, clothing, decorative materials, civil engineering and other fields.
    advantage
    A. Short process flow, high production efficiency,
    B. The whole cloth process is automatically controlled from top to bottom. AC frequency conversion technology (more energy-saving) and touch screen control. The technology has the advantages of reasonable structure, space saving, high performance, low production consumption, convenient operation and less operation faults.
    C. PLC control, touch screen operation.
    characteristic
    Dosing metering system
    Vacuum suction or blower feeding system. Weight measurement system, accurate. High and low limit automatic alarm.
    Rotating beam
    Single coat hanger, melt distribution, four coordinate NC manufacturing, manual grinding.
    Quenching chamber
    Multilayer honey board with holes of different sizes. The quenching air flow is evenly distributed, which is convenient for disassembly and cleaning.
    Stretch channel
    The inner wall is made of polished stainless steel, and the upper and lower expansion grooves can adjust the groove width at the same time.
    Communication channels
    The tank body is made of stainless steel. The special forming process and welding process ensure that the whole channel is flat without shape change.
    Conveyor
    The roller adopts dynamic balance detection to ensure stable operation. The surface of the preloading roll is coated with ceramics to prevent winding. MB system is protected by pneumatic belt.
    Meltbloom system
    The imported screw blower is used to produce elastic air. Constant pressure, low rotational pressure, high rotational pressure
    High efficiency and low power consumption.
    electric control system
    The whole machine is controlled by PLC, the AC variable frequency motor is the whole synchronous system, and the process parameters and faults can be displayed and alarmed. The whole system runs stably and reliably.
    2. Main applications of Spunbonded Nonwovens
    Non woven packaging products
    Shopping bags, rice packaging, tea bags, clothing packaging, etc.
    Non woven sanitary products
    Baby and adult diapers: top film, back film, ear film, adhesive tape, falling area;
    Women's health: top sheets, wings;
    Cleaning wipes: baby care, cosmetics, etc.
    Non woven medical products
    Surgical cap, surgical mask, disposable clothing, surgical film, surgical film, shoe cover, etc.
    Nonwoven technology products
    Geotextile: anti-corrosion, filtration, reinforcement, drainage, isolation layer, embankment reinforcement, etc.
    Embankment and agricultural structure works: asphalt support, roof insulation board and wall protection board
    Automobile, interior trim panel, sound insulation material, heat insulation material, etc.
    Non woven furniture products
    Bed: pocket springs, mattresses, cushions, sheets, treated bedding
    Seats: padded backrest, fender, middle layer, etc
    3. Main applications of spunbonded composite nonwovens
    Non woven sanitary products
    Baby and adult diapers
    Non woven medical products
    Surgical mask, surgical mask, etc.
    Non woven filter products
    Gas, air, liquid (benzene, water, blood), etc.
    Work protection products
    Protective clothing, breathing mask.
    4.Application:
    The non-woven production line is designed and manufactured according to the individual requirements of customers.
    Therefore, they may have a wide range of applications.
    800KW Spunbond Non Woven Fabric Making Machine Polypropylene

    Machine ModelReifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS
    Machine Size18m-60m(L)*10m-31m(W)*10m-12m(H)
    Raw Material required

    PP(polypropylene),additives

    MFI/MFR:25-40g/10min(spunbonding process)

    MFI/MFR:800-2000g/10min (Melt-blowning process)

    Effective width1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements
    Max Speed150m/mn-550m/min
    Transformer&Power consumption

    Transformer require:200KVA-3000KVA

    Power consumption :500KWH/Ton-1400KWH/Ton

    Output per year1500 Tons - 10000 Tons
    Products GSM8gsm-250 gsm
    Applications of products

    Industrial:Shopping bags, furniture ,agriculture ,packageing,etc

    Medical:Surgical gown /cap /sheet /mask ,etc

    Hygiene: Diapers ,sanitary ,napking , etc.

    Advanced technology nonwoven fabric making machine

    S Model (Packaging , Agricultural Cover )

    Working widthFabricConsumptionAnnual output/Year
    1600mm9-250G/㎡130KW1800T
    2400mm9-250G/㎡180KW2200T
    3200mm9-250G/㎡200KW3300T
    4000mm9-250G/㎡300KW4400T
    4800mm9-250G/㎡400KW5100T

    SS Model ( Baby Diaper ,Medical Products )

    Working widthFabricConsumptionAnnual output/Year
    1600mm9-120G/㎡200KW3700T
    2400mm9-120G/㎡2500KW5100T
    3200mm9-120G/㎡200KW6600T
    4000mm9-120G/㎡300KW8800T
    4800mm9-120G/㎡450KW10000T


    M Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm15-300G/㎡≈600KVA3000º-3500º/Ton800T
    2400mm15-300G/㎡≈800KVA3000º-3500º/Ton1100T
    3200mm15-300G/㎡≈1000KVA3000º-3500º/Ton1500T

    SMS Model

    Working widthFabricPower inputConsumptionAnnual output/Year
    1600mm9-100G/㎡≈800KVA1300º-1600º/Ton3200T
    2400mm9-100G/㎡≈1250KVA1300º-1600º/Ton5100T
    3200mm9-100G/㎡≈1600KVA1300º-1600º/Ton7000T
    4000mm9-100G/㎡≈2000KVA1300º-1600º/Ton8700T
    4800mm9-100G/㎡≈2250KVA1300º-1600º/Ton10500T

    Width1600 M
    Gsm9 - 120 gsm
    Output per day8 - 10.5 Ton
    Machine Speed≦ 350 m / min
    Transformer≈ 400 KVA
    Power Consumption650º - 800º / Ton
    Machine Size45 * 15 *12 M

    Description Of Non-woven Machine


    B.Parts of spunbonded nonwoven fabric production line:
    Recycle extruder---->Main extruder---->Filter---->Metering pump---->
    Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
    Quenching air chamber---->Stretching device---->Web former---->
    Calender---->Winder---->Slitter


    C.Spunbonded process and technical flow chart:
    Additive(Recycling off-cut fabric)---->Raw material----> Melting---->
    Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
    Web forming---->Calendering---->Winding----> Cutting---->Final product


    D.Parts of Melt blown nonwoven fabric production line:
    Main extruder---->Filter---->Metering pump---->Air heating system---->
    Melt blown sprayer(ENKA sprayer)---->Web former---->Winder---->Slitter


    E.Melt blown process and technical flow chart:
    Raw material----> Melting---->Filtering---->Measuring ---->Air heating---->
    Spraying---->Web forming---->Winding----> Cutting---->Final product



    Main parts of spunbond making machine


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    Spinning Beam

    Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    Extrusion Machine

    Aperture:90 300kg/h 1pc;

    Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;


    Meltblown die head assembly

    maximum temperature: 300.;

    Max.output:200kg/h;

    Heating zone:8tod;

    Perforated length:3,350mm;

    HPI:40;

    1 Sets L/D=10; Number of holes:5.276;

    Capillary diameter:0.3mm;

    Capillary length:3,600mm;


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    Automatic Winding Machine

    Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    Production Line Control Cabinet

    Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;


    Precisely CNC center hold machining parts beyond customer require.


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    Exhibition Show with customer




    Packaging Details


    Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    800KW Spunbond Non Woven Fabric Making Machine Polypropylene


    our service :


    1.Machine Inspection


    We warmly welcome the customer to come our factory to inspect the production line before delivery . The machines only be delivered when the you accept the quality of the machines and the product.


    2.Installation and Training


    Once we finalize the production and delivery,we will assign about 1-3 professional engineers both in mechanical and electrical parts to the buyer’s factory for installation and samples test . And the engineers will also train some skilled workers for buyer. The seller will explain, operate and analyse in theory on the spot until the customer can operate the equipment himself. The customer can consult with the seller at any moment if they don’t understand.


    3.After-sale Service


    If you have difficulties or faults that can not be resolved by themselves during the practical production, we will offer relative technology immediately or assign workers to resolve the problems on the spot.
