single beam S 1600 high speed Non Woven Fabric Making Machine​

PP Non Woven Fabric Extrusion Line for Making Nonwoven Rolls.
This production line is polypropylene non-woven fabric equipment. Its raw material is polypropylene(PP), take the principle of spinning fibres, during polymer filature, continuous filament is extended into fiber, during which is finished by mechanical hot pressing.


Final Products Name:PP Spun-bond Non-woven Fabric Making Production Line

Raw Material: Polypropylene granule,master batches,additive;

Production Process: With high temperature filament drawn, certain proportion of polypropylene, masterbatch and additive are drawn into net by negative pressure, which are boned together being into fabric by calender.

Products Features: Easy operation; High capacity; no pollution and no waste; Fabric uniformity&High strength&Good touch feeling.

Application: The final fabrics are used for hygienic material, packing, agricultural cover , clothing packing, household products, hotel accessories etc;

Raw Material ratio: Raw Material Ratio: Polypropylene, master batch, additive

HHM 1600 m S Single beam fabric making line date
Width
1600 M
Gsm
9 - 250 gsm
Output per day
4 - 6 Ton
Machine Speed
≦150 m / min
Transformer
≈ 200 KVA
Power Consumption
600º - 700º / Ton
Machine Size
18 * 8 *12 M

S Model

Spunbond making line cataloge

Application:
This is filament polypropylene fiber spun-bonded nonwoven fabrics equipment. Its raw material is polypropylene (PP), take the principle of spinning man-made fibers, during polymer filature, a continuous filament is extended into fiber net, which is finished by mechanical hot pressing. The machine assembly we adopt is now advanced veneer integer slot airflow draw technology, the whole process from material feeding to cloth output is automatic control, short production flow, high working efficiency.The nonwoven fabrics we produce has high strength, good softness, innocuity, bacterium-proof, corrosion resistance, high-level draw strength and elongation rate, They are widely used for dress, decoration materials, medical sanitation materials, daily life products and in the industrials, agriculture fields. In addition, this production line can produce non-woven fabrics of a different color, different grams, different lines according to user''s requirements.
Technical Data

Process diagram:

This is the process flow chart of spunbonded non-woven fabric line. The whole assembly line has clear structure and perfect
function. The role and function of each link are clearly visible.

Advannced CNC Tools

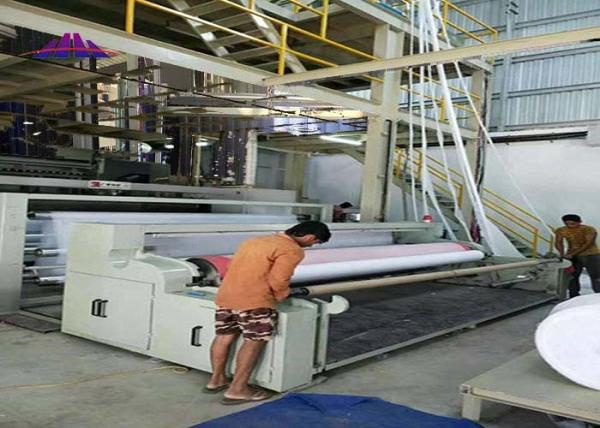

Nonwoven line in job side



FAQ
1. Q : Are you a factory or trading company ?
A : We are established in 2009 , has been in onwoven industry for more than ten years .
2. Q: Do you have technical support?
A: yes , we will provide on-site installation service.
3 Q : How does your factory do regarding quality control ?
A: Quality is the most important principle . we always attach great importane to quality controlling from the very beginnging to the very end , our factory has passed CE and ISO certification .
4 Q :How long is you machine’s warrant period .
A : bascily one year warranty , long time service support .

CHUZHOU HH Non Woven Technology CO.,LTD is professional in manufacturing and selling PP/PET spunbonded and meltblown nonwoven fabric making machine.

With the stable quality and easy operation of the nonwoven production line, our regular product includes single beam, double beam, SSS, SMS, SMMS, SSMMS and etc., regular width is 1600mm, 2400mm, 3200mm,4000mm,4200mm;

Varies applications for shopping bags, home decoration, medical area, hygiene area, agricultrue, and etc.

We have good reputation in spunbond area not even in China but also in other country, we have supplied to China domestic, India, Pakistan, Turkey, Russia, Australia, and etc.

We insist on customer-focused, quality-first, best after-sale service, expecting the cooperation with you.

1) The whole line is well-structured and easy to operate.

2) The whole line is highly automated.

3) Control elements are of well-know make, high performance and reliable technologies.

4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.

Features:

1)It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labor and widely compatibility and so on.

The equipment produces non-woven fabric with polypropylene(PP), adopts the technology of formating the web by negative pressure, make into PP spun-bonded non-

woven fabric, the product is featured by uniform cover, great intensity, good ventilation and good feeling and so on. It has been in wide use in medical clothes, package and architecture and so on.

2)The lower investment can reduce some unnecessary additional auxiliary facilities, and under the conditions of guaranteeing the technology requirement and safe production, can reduce the cost of the manufacture, so that we can reduce the investment lower.

3)Its easy and reliable to making technics adjustment, the line adopts the method of computer controlling assistant systems combines with human control to make the technics adjustment become more easier and reliable, and the machine can adapt to different raw materials to gain more widely usage.

4)The requirement of the workshop and equipment is very simple, it reduces the fixed assets investment, and efficiently take the advantage of the room of the platform, and enlarge the utilization of the workshop and the steel platform.

5) More specialty in processing the main equipment increasing the procession precious and capacity of the machine, this reduces the manufacture cost and to undertake the quality of the product more well.

APPLICATION:

Medical Protect

Surgical gown&cap, patient clothes, bed sheet, pillow covers, face mask, glover, diaper, Shoe cover, curtains, etc.

Sanitary and Health

Baby diaper, feminine hygiene, hygiene pad, baby training trouser, incontinence pads. etc. Cover of the high absorbent material after hydrophilic treatment, diaper edge for preventing Leaking. Diaper backing after composite with other material etc

Packing and Industry

Shopping bag, tarpauins, tents, bag for rice/sugar, luggage, vacuum cleaner bag, buff pad, Interlining and cloth, shoulder padding etc.

Argriculture:

Cover tree, cope cover, garden cover etc.
